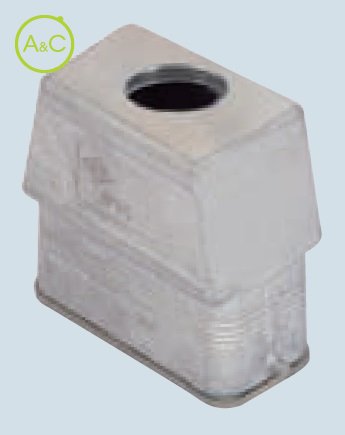

Hoods for electromagnetic compatibility with pegs
Haben Sie Fragen zu diesem Produkt?
Weitere Informationen über diese Marke:
Ilme
- General
Article Number | CZFVS 25 L21* |
Protection Degree | IP66 |
Material Housing | Aluminium |
Height | 70.5 mm |
Remark | Enclosure without adaptor, threaded on the body, to be used only with a complete cable gland |
Length | 79.5 |
Extra Information |
Corrosion resistant EMC Version UV resistant With interlocking device |
Coating Housing | With powder coating |
Required Inserts | CD 25 P; CDD 38 P + PE; CSAH 16 P + PE; CDA 16 P + PE; CDC 16 P + PE |
Locking Mechanism | Single locking lever |
Operation Lower Temperature | -40 °C |
Operation Upper Temperature | 125 °C |
Position Cable Feed | Top entry |
Width | 36 mm |
Die Merkmale zwischen Varianten und Subvarianten sind unterschiedlich
