Housing for DCJ Connector
Haben Sie Fragen zu diesem Produkt?
Weitere Informationen über diese Marke:
JST
JST
Number Of Poles
- 2
| Article Number | DCJR-02V-A |
| Number Of Contacts | 2 |
| Upper Temperature | +85 °C |
| Lower Temperature | -25 °C |
| General Description | Jack Connector |
| Connection Type | Wire to Wire Connectors |
| Pitch / Style | Single-Circuit mm |
| Rated Current (ac/dc) | 6 A |
| Rated Voltage (ac/dc) | 16 V |
Die Merkmale zwischen Varianten und Subvarianten sind unterschiedlich

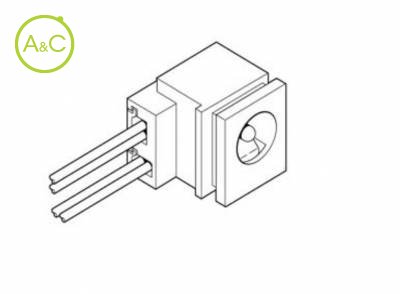

This is a jack connector for DC power supply used for handheld devices and notebook PC.
'Harness type with crimping' is adopted to prevent from defectives of conventional product such as 'Solder crack' of PC board mounting types due to an excessive external force when mating and unmating operations, and 'Poor soldering' of harness types with solder potting. High safety is realized.
Good workability when assembling connector
Easy setting to an equipment panel
For large current
RoHS Compliant
