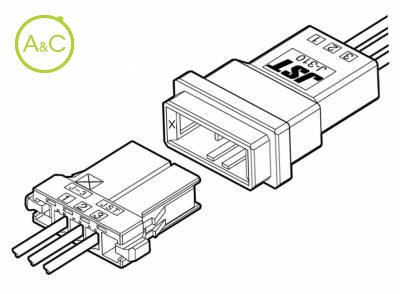

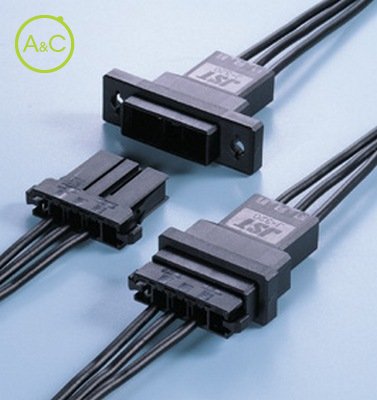

Tab Housing Panel Mounting Single Row

JFA CONNECTOR J300 Series

F32MSP-01V-KX

F32MSP-01V-KX

Haben Sie Fragen zu diesem Produkt?

Kontaktieren Sie unseren Steckverbinderspezialist

Schick mir ein individuelles Angebot

Download Datenblatt

Weitere Informationen über diese Marke:

Number Of Poles

1
2
3
4

Article Number	F32MSP-01V-KX	F32MSP-01V-KY
Number Of Contacts	1	1
Upper Temperature	+105 °C	+105 °C
Lower Temperature	-55 °C	-55 °C
General Description	5.08mm Pitch Disconnectable Crimp Style (Wire to Wire)	5.08mm Pitch Disconnectable Crimp Style (Wire to Wire)
Connection Type	Factory Automation Connectors	Factory Automation Connectors
Pitch / Style	5.08 mm	5.08 mm
Rated Current (ac/dc)	15 A	15 A
Rated Voltage (ac/dc)	600 V	600 V
Remark	X Keying	Y Keying

Article Number	F32MSP-02V-KX	F32MSP-02V-KY
Number Of Contacts	2	2
Upper Temperature	+105 °C	+105 °C
Lower Temperature	-55 °C	-55 °C
General Description	5.08mm Pitch Disconnectable Crimp Style (Wire to Wire)	5.08mm Pitch Disconnectable Crimp Style (Wire to Wire)
Connection Type	Factory Automation Connectors	Factory Automation Connectors
Pitch / Style	5.08 mm	5.08 mm
Rated Current (ac/dc)	15 A	15 A
Rated Voltage (ac/dc)	600 V	600 V
Remark	X Keying	Y Keying

Article Number	F32MSP-03V-KX	F32MSP-03V-KY
Number Of Contacts	3	3
Upper Temperature	+105 °C	+105 °C
Lower Temperature	-55 °C	-55 °C
General Description	5.08mm Pitch Disconnectable Crimp Style (Wire to Wire)	5.08mm Pitch Disconnectable Crimp Style (Wire to Wire)
Connection Type	Factory Automation Connectors	Factory Automation Connectors
Pitch / Style	5.08 mm	5.08 mm
Rated Current (ac/dc)	15 A	15 A
Rated Voltage (ac/dc)	600 V	600 V
Remark	X Keying	Y Keying

Article Number	F32MSP-04V-KX	F32MSP-04V-KY
Number Of Contacts	4	4
Upper Temperature	+105 °C	+105 °C
Lower Temperature	-55 °C	-55 °C
General Description	5.08mm Pitch Disconnectable Crimp Style (Wire to Wire)	5.08mm Pitch Disconnectable Crimp Style (Wire to Wire)
Connection Type	Factory Automation Connectors	Factory Automation Connectors
Pitch / Style	5.08 mm	5.08 mm
Rated Current (ac/dc)	15 A	15 A
Rated Voltage (ac/dc)	600 V	600 V
Remark	X Keying	Y Keying

Die Merkmale zwischen Varianten und Subvarianten sind unterschiedlich
