Connectors with ferrite plates dip solder 90° version

With mounting bracket, grounding clip and UNC 4-40 thread
With turned contacts

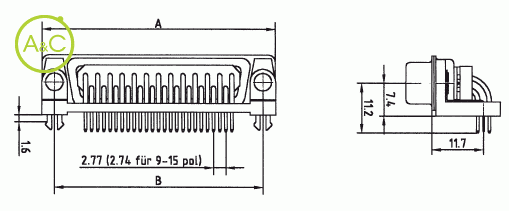

FP 09 56 G.R4B

FP 09 56 G.R4B

Haben Sie Fragen zu diesem Produkt?

Kontaktieren Sie unseren Steckverbinderspezialist

Schick mir ein individuelles Angebot

Download Datenblatt

Weitere Informationen über diese Marke:

Number Of Poles

9
15
25
37

Article Number	FP 09 56 G.R4B	FP 09 66 G.R4B
Number Of Contacts	9	9
Upper Temperature	+85 °C	+85 °C
Lower Temperature	-25 °C	-25 °C
Rated Voltage	100	100
Remark	For the requested quality class please replace the "." at the end of the article no. By using 1,2,3	For the requested quality class please replace the "." at the end of the article no. By using 1,2,3
Remark ***	For the requested Thread type please replace the "4" (standard) at the end of the article no. By using 3 or 4	For the requested Thread type please replace the "4" (standard) at the end of the article no. By using 3 or 4
Insulation Resistance	1 MΩ	1 MΩ
Extra Information	The economical EMC solution for low loss	The economical EMC solution for low loss
Thread Type	3 = M3 4= UNC-4-40	3 = M3 4= UNC-4-40
Current Rating	Max. 5	Max. 5
Gender	Male	Female
Test Voltage U Eff	200	200
Quality Class*	Class 1 = 500 mating cycles Class 2 = 200 mating cycles Class 3 = 50 mating cycles	Class 1 = 500 mating cycles Class 2 = 200 mating cycles Class 3 = 50 mating cycles
Capacitor Values****	01 = 2000 pF 02= 1000 pF 03= 500 pF 04= 250 pF 05= 120 pF 06= 43 pF 07= 22 pF 08= 15 pF 09 = 2 pF (available for non-filters pins) 10 = customized types	01 = 2000 pF 02= 1000 pF 03= 500 pF 04= 250 pF 05= 120 pF 06= 43 pF 07= 22 pF 08= 15 pF 09 = 2 pF (available for non-filters pins) 10 = customized types

Article Number	FP 15 56 G.R4B	FP 15 66 G.R4B
Number Of Contacts	15	15
Upper Temperature	+85 °C	+85 °C
Lower Temperature	-25 °C	-25 °C
Rated Voltage	100	100
Remark	For the requested quality class please replace the "." at the end of the article no. By using 1,2,3	For the requested quality class please replace the "." at the end of the article no. By using 1,2,3
Remark ***	For the requested Thread type please replace the "4" (standard) at the end of the article no. By using 3 or 4	For the requested Thread type please replace the "4" (standard) at the end of the article no. By using 3 or 4
Insulation Resistance	1 MΩ	1 MΩ
Extra Information	The economical EMC solution for low loss	The economical EMC solution for low loss
Thread Type	3 = M3 4= UNC-4-40	3 = M3 4= UNC-4-40
Current Rating	Max. 5	Max. 5
Gender	Male	Female
Test Voltage U Eff	200	200
Quality Class*	Class 1 = 500 mating cycles Class 2 = 200 mating cycles Class 3 = 50 mating cycles	Class 1 = 500 mating cycles Class 2 = 200 mating cycles Class 3 = 50 mating cycles
Capacitor Values****	01 = 2000 pF 02= 1000 pF 03= 500 pF 04= 250 pF 05= 120 pF 06= 43 pF 07= 22 pF 08= 15 pF 09 = 2 pF (available for non-filters pins) 10 = customized types	01 = 2000 pF 02= 1000 pF 03= 500 pF 04= 250 pF 05= 120 pF 06= 43 pF 07= 22 pF 08= 15 pF 09 = 2 pF (available for non-filters pins) 10 = customized types

Article Number	FP 25 56 G.R4B	FP 25 66 G.R4B
Number Of Contacts	25	25
Upper Temperature	+85 °C	+85 °C
Lower Temperature	-25 °C	-25 °C
Rated Voltage	100	100
Remark	For the requested quality class please replace the "." at the end of the article no. By using 1,2,3	For the requested quality class please replace the "." at the end of the article no. By using 1,2,3
Remark ***	For the requested Thread type please replace the "4" (standard) at the end of the article no. By using 3 or 4	For the requested Thread type please replace the "4" (standard) at the end of the article no. By using 3 or 4
Insulation Resistance	1 MΩ	1 MΩ
Extra Information	The economical EMC solution for low loss	The economical EMC solution for low loss
Thread Type	3 = M3 4= UNC-4-40	3 = M3 4= UNC-4-40
Current Rating	Max. 5	Max. 5
Gender	Male	Female
Test Voltage U Eff	200	200
Quality Class*	Class 1 = 500 mating cycles Class 2 = 200 mating cycles Class 3 = 50 mating cycles	Class 1 = 500 mating cycles Class 2 = 200 mating cycles Class 3 = 50 mating cycles
Capacitor Values****	01 = 2000 pF 02= 1000 pF 03= 500 pF 04= 250 pF 05= 120 pF 06= 43 pF 07= 22 pF 08= 15 pF 09 = 2 pF (available for non-filters pins) 10 = customized types	01 = 2000 pF 02= 1000 pF 03= 500 pF 04= 250 pF 05= 120 pF 06= 43 pF 07= 22 pF 08= 15 pF 09 = 2 pF (available for non-filters pins) 10 = customized types

Article Number	FP 37 56 G.R4B	FP 37 66 G.R4B
Number Of Contacts	37	37
Upper Temperature	+85 °C	+85 °C
Lower Temperature	-25 °C	-25 °C
Rated Voltage	100	100
Remark	For the requested quality class please replace the "." at the end of the article no. By using 1,2,3	For the requested quality class please replace the "." at the end of the article no. By using 1,2,3
Remark ***	For the requested Thread type please replace the "4" (standard) at the end of the article no. By using 3 or 4	For the requested Thread type please replace the "4" (standard) at the end of the article no. By using 3 or 4
Insulation Resistance	1 MΩ	1 MΩ
Extra Information	The economical EMC solution for low loss	The economical EMC solution for low loss
Thread Type	3 = M3 4= UNC-4-40	3 = M3 4= UNC-4-40
Current Rating	Max. 5	Max. 5
Gender	Male	Female
Test Voltage U Eff	200	200
Quality Class*	Class 1 = 500 mating cycles Class 2 = 200 mating cycles Class 3 = 50 mating cycles	Class 1 = 500 mating cycles Class 2 = 200 mating cycles Class 3 = 50 mating cycles
Capacitor Values****	01 = 2000 pF 02= 1000 pF 03= 500 pF 04= 250 pF 05= 120 pF 06= 43 pF 07= 22 pF 08= 15 pF 09 = 2 pF (available for non-filters pins) 10 = customized types	01 = 2000 pF 02= 1000 pF 03= 500 pF 04= 250 pF 05= 120 pF 06= 43 pF 07= 22 pF 08= 15 pF 09 = 2 pF (available for non-filters pins) 10 = customized types

Die Merkmale zwischen Varianten und Subvarianten sind unterschiedlich
