A&C Solutions - HDL - HDLM 20201

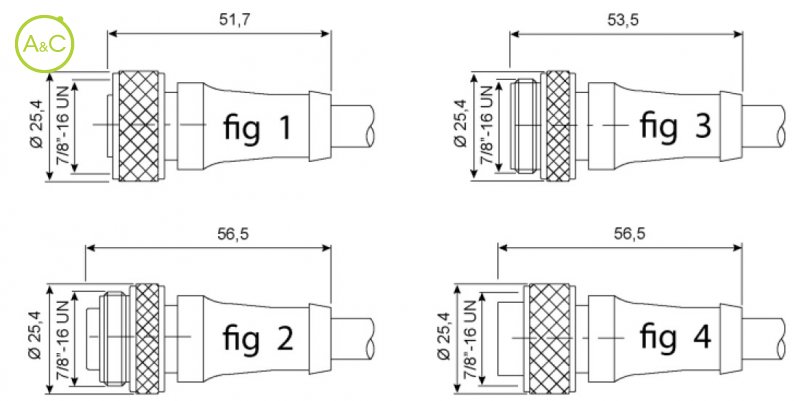

Article Number	HDLM 20201 660 2000	HDLR 20201 660 2000
Number Of Contacts	2	2
Protection Degree	IP65*	IP65*
Upper Temperature	+80 °C	+80 °C
Lower Temperature	-40 °C	-40 °C
Housing Material	TPU	TPU
Housing Oil Resistance	Very good	Very good
Contact Material	Golden over nickel plated CuZn	Golden over nickel plated CuZn
Locking Nut Material	Brass nickel plated	Brass nickel plated
Overvoltage Category	II	II
Voltage Vdc	1 to 600***	1 to 600***
Voltage Vac	1 to 600***	1 to 600***
Max. Currrent	12 A @40°C	12 A @40°C
Contact Gender	M	M
Thread Gender	M	F
Shielding	not connected	not connected
Ground Pole	No	No
Max. Number Wires	2	2
Wire Colour	bn1, bu2	bn1, bu2
Remark	The protection degree level is guaranteed only when correctly assembled with Shield's couterpart	The protection degree level is guaranteed only when correctly assembled with Shield's couterpart
Remark ***	With polution degree 3, the maximum voltage is 300 Vac	With polution degree 3, the maximum voltage is 300 Vac

Article Number	HDLM 20339 661 2000	HDLR 20339 661 2000
Number Of Contacts	3	3
Protection Degree	IP65*	IP65*
Upper Temperature	+80 °C	+80 °C
Lower Temperature	-40 °C	-40 °C
Housing Material	TPU	TPU
Housing Oil Resistance	Very good	Very good
Contact Material	Golden over nickel plated CuZn	Golden over nickel plated CuZn
Locking Nut Material	Brass nickel plated	Brass nickel plated
Overvoltage Category	II	II
Voltage Vdc	1 to 600***	1 to 600***
Voltage Vac	1 to 600***	1 to 600***
Max. Currrent	12 A @40°C	12 A @40°C
Contact Gender	M**	M**
Thread Gender	M	F
Shielding	not connected	not connected
Ground Pole	Yes	Yes
Max. Number Wires	3	3
Wire Colour	bn2, bu3, gn/ye1	bn2, bu3, gn/ye1
Remark	The protection degree level is guaranteed only when correctly assembled with Shield's couterpart	The protection degree level is guaranteed only when correctly assembled with Shield's couterpart
Remark ***	With polution degree 3, the maximum voltage is 300 Vac	With polution degree 3, the maximum voltage is 300 Vac

Article Number	HDLM 20437 663 2000	HDLR 20437 663 2000
Number Of Contacts	4	4
Protection Degree	IP65*	IP65*
Upper Temperature	+80 °C	+80 °C
Lower Temperature	-40 °C	-40 °C
Housing Material	TPU	TPU
Housing Oil Resistance	Very good	Very good
Contact Material	Golden over nickel plated CuZn	Golden over nickel plated CuZn
Locking Nut Material	Brass nickel plated	Brass nickel plated
Overvoltage Category	II	II
Voltage Vdc	1 to 600***	1 to 600***
Voltage Vac	1 to 600***	1 to 600***
Max. Currrent	9 A @40°C	9 A @40°C
Contact Gender	M**	M**
Thread Gender	M	F
Shielding	not connected	not connected
Ground Pole	Yes	Yes
Max. Number Wires	4	4
Wire Colour	bn3, bu2, bk1, gn/ye4	bn3, bu2, bk1, gn/ye4
Remark	The protection degree level is guaranteed only when correctly assembled with Shield's couterpart	The protection degree level is guaranteed only when correctly assembled with Shield's couterpart
Remark ***	With polution degree 3, the maximum voltage is 300 Vac	With polution degree 3, the maximum voltage is 300 Vac

Article Number	HDLM 20538 665 2000	HDLR 20538 665 2000
Number Of Contacts	5	5
Protection Degree	IP65*	IP65*
Upper Temperature	+80 °C	+80 °C
Lower Temperature	-40 °C	-40 °C
Housing Material	TPU	TPU
Housing Oil Resistance	Very good	Very good
Contact Material	Golden over nickel plated CuZn	Golden over nickel plated CuZn
Locking Nut Material	Brass nickel plated	Brass nickel plated
Overvoltage Category	II	II
Voltage Vdc	1 to 600***	1 to 600***
Voltage Vac	1 to 600***	1 to 600***
Max. Currrent	9 A @40°C	9 A @40°C
Contact Gender	M**	M**
Thread Gender	M	F
Shielding	not connected	not connected
Ground Pole	Yes	Yes
Max. Number Wires	5	5
Wire Colour	bn4, wh5, bu2, bk1, gn/ye3	bn4, wh5, bu2, bk1, gn/ye3
Remark	The protection degree level is guaranteed only when correctly assembled with Shield's couterpart	The protection degree level is guaranteed only when correctly assembled with Shield's couterpart
Remark ***	With polution degree 3, the maximum voltage is 300 Vac	With polution degree 3, the maximum voltage is 300 Vac

Article Number	HDLM 20683 599 2000	HDLR 20683 599 2000
Number Of Contacts	6	6
Protection Degree	IP65*	IP65*
Upper Temperature	+80 °C	+80 °C
Lower Temperature	-40 °C	-40 °C
Housing Material	TPU	TPU
Housing Oil Resistance	Very good	Very good
Contact Material	Golden over nickel plated CuZn	Golden over nickel plated CuZn
Locking Nut Material	Brass nickel plated	Brass nickel plated
Overvoltage Category	II	II
Voltage Vdc	1 to 600***	1 to 600***
Voltage Vac	1 to 600***	1 to 600***
Max. Currrent	9 A @40°C	9 A @40°C
Contact Gender	M**	M**
Thread Gender	M	F
Shielding	not connected	not connected
Ground Pole	Yes	Yes
Max. Number Wires	6	6
Wire Colour	n1-1, n2-2, gn/ye3, n3-4, n4-5, n5-6	n1-1, n2-2, gn/ye3, n3-4, n4-5, n5-6
Remark	The protection degree level is guaranteed only when correctly assembled with Shield's couterpart	The protection degree level is guaranteed only when correctly assembled with Shield's couterpart
Remark ***	With polution degree 3, the maximum voltage is 300 Vac	With polution degree 3, the maximum voltage is 300 Vac

Article Number	HDLM 214C2 3P6 2000	HDLR 214C2 3P6 2000
Number Of Contacts	14	14
Protection Degree	IP65*	IP65*
Upper Temperature	+80 °C	+80 °C
Lower Temperature	-40 °C	-40 °C
Housing Material	TPU	TPU
Housing Oil Resistance	Very good	Very good
Contact Material	Golden over nickel plated CuZn	Golden over nickel plated CuZn
Locking Nut Material	Brass nickel plated	Brass nickel plated
Overvoltage Category	II	II
Voltage Vdc	1 to 600***	1 to 600***
Voltage Vac	1 to 600***	1 to 600***
Max. Currrent	4(Signal) 9(Common) A @40°C	4(Signal) 9(Common) A @40°C
Contact Gender	M	M
Thread Gender	M	F
Shielding	not connected	not connected
Ground Pole	No	No
Max. Number Wires	14	14
Wire Colour	din 47100 #C2	din 47100 #C2
Remark	The protection degree level is guaranteed only when correctly assembled with Shield's couterpart	The protection degree level is guaranteed only when correctly assembled with Shield's couterpart
Remark ***	With polution degree 3, the maximum voltage is 300 Vac	With polution degree 3, the maximum voltage is 300 Vac
