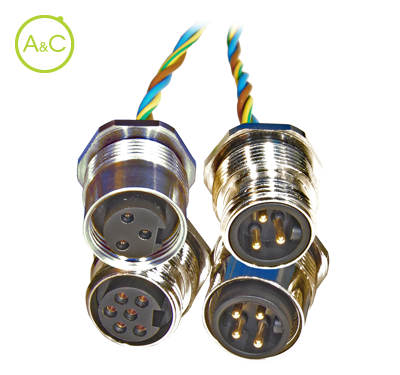

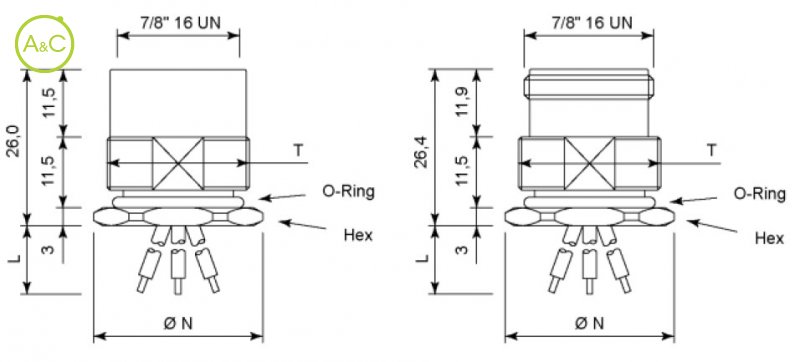

Female power receptacle

HDS - HDSF 00201

HDS - HDSF 00201

Haben Sie Fragen zu diesem Produkt?

Kontaktieren Sie unseren Steckverbinderspezialist

Schick mir ein individuelles Angebot

Download Datenblatt

Weitere Informationen über diese Marke:

Number Of Poles

2
3
4
5
6
14

Article Number	HDSF 00201 6A7 0200 000	HDSH 00201 6A7 0200 000
Number Of Contacts	2	2
Protection Degree	IP67 (only frontal side)*	IP67 (only frontal side)*
Upper Temperature	+80 °C	+80 °C
Lower Temperature	-40 °C	-40 °C
Housing Material	Nickel plated brass	Nickel plated brass
Contact Material	Golden over nickel plated CuZn	Golden over nickel plated CuZn
Overvoltage Category	II	II
Voltage Vdc	1 to 600***	1 to 600***
Voltage Vac	1 to 600***	1 to 600***
Max. Currrent	12 A @40°C	12 A @40°C
Contact Gender	F	F
Thread Gender	F	M
Ground Pole	No	No
Max. Number Wires	2	2
Wire Colour	bn1, bu2	bn1, bu2
Remark	The protection degree level is guaranteed only when correctly assembled with Shield's couterpart	The protection degree level is guaranteed only when correctly assembled with Shield's couterpart
Remark ***	With polution degree 3, the maximum voltage is 300 Vac	With polution degree 3, the maximum voltage is 300 Vac

Article Number	HDSF 00309 6A7 0200 000	HDSH 00309 6A7 0200 000	HDSF 00339 6A7 0200 000	HDSH 00339 6A7 0200 000
Number Of Contacts	3	3	3	3
Protection Degree	IP67 (only frontal side)*	IP67 (only frontal side)*	IP67 (only frontal side)*	IP67 (only frontal side)*
Upper Temperature	+80 °C	+80 °C	+80 °C	+80 °C
Lower Temperature	-40 °C	-40 °C	-40 °C	-40 °C
Housing Material	Nickel plated brass	Nickel plated brass	Nickel plated brass	Nickel plated brass
Contact Material	Golden over nickel plated CuZn	Golden over nickel plated CuZn	Golden over nickel plated CuZn	Golden over nickel plated CuZn
Overvoltage Category	II	II	II	II
Voltage Vdc	1 to 600***	1 to 600***	1 to 600***	1 to 600***
Voltage Vac	1 to 600***	1 to 600***	1 to 600***	1 to 600***
Max. Currrent	12 A @40°C	12 A @40°C	12 A @40°C	12 A @40°C
Contact Gender	F	F	F	F
Thread Gender	F	M	F	M
Ground Pole	No	No	Yes	Yes
Max. Number Wires	3	3	3	3
Wire Colour	bn2, bu3, bk1	bn2, bu3, bk1	bn2, bu3, gn/ye1	bn2, bu3, gn/ye1
Remark	The protection degree level is guaranteed only when correctly assembled with Shield's couterpart	The protection degree level is guaranteed only when correctly assembled with Shield's couterpart	The protection degree level is guaranteed only when correctly assembled with Shield's couterpart	The protection degree level is guaranteed only when correctly assembled with Shield's couterpart
Remark ***	With polution degree 3, the maximum voltage is 300 Vac	With polution degree 3, the maximum voltage is 300 Vac	With polution degree 3, the maximum voltage is 300 Vac	With polution degree 3, the maximum voltage is 300 Vac

Article Number	HDSF 00407 6A7 0200 000	HDSH 00407 6A7 0200 000	HDSF 00437 6A7 0200 000	HDSH 00437 6A7 0200 000
Number Of Contacts	4	4	4	4
Protection Degree	IP67 (only frontal side)*	IP67 (only frontal side)*	IP67 (only frontal side)*	IP67 (only frontal side)*
Upper Temperature	+80 °C	+80 °C	+80 °C	+80 °C
Lower Temperature	-40 °C	-40 °C	-40 °C	-40 °C
Housing Material	Nickel plated brass	Nickel plated brass	Nickel plated brass	Nickel plated brass
Contact Material	Golden over nickel plated CuZn	Golden over nickel plated CuZn	Golden over nickel plated CuZn	Golden over nickel plated CuZn
Overvoltage Category	II	II	II	II
Voltage Vdc	1 to 600***	1 to 600***	1 to 600***	1 to 600***
Voltage Vac	1 to 600***	1 to 600***	1 to 600***	1 to 600***
Max. Currrent	9 A @40°C	9 A @40°C	9 A @40°C	9 A @40°C
Contact Gender	F	F	F	F
Thread Gender	F	M	F	M
Ground Pole	No	No	Yes	Yes
Max. Number Wires	4	4	4	4
Wire Colour	bn3, wh4, bu2, bk1	bn3, wh4, bu2, bk2	bn3, bu2, bk1, gn/ye4	bn3, bu2, bk1, gn/ye4
Remark	The protection degree level is guaranteed only when correctly assembled with Shield's couterpart	The protection degree level is guaranteed only when correctly assembled with Shield's couterpart	The protection degree level is guaranteed only when correctly assembled with Shield's couterpart	The protection degree level is guaranteed only when correctly assembled with Shield's couterpart
Remark ***	With polution degree 3, the maximum voltage is 300 Vac	With polution degree 3, the maximum voltage is 300 Vac	With polution degree 3, the maximum voltage is 300 Vac	With polution degree 3, the maximum voltage is 300 Vac

Article Number	HDSF 00508 6A7 0200 000	HDSH 00508 6A7 0200 000	HDSF 00538 6A7 0200 000	HDSH 00538 6A7 0200 000
Number Of Contacts	5	5	5	5
Protection Degree	IP67 (only frontal side)*	IP67 (only frontal side)*	IP67 (only frontal side)*	IP67 (only frontal side)*
Upper Temperature	+80 °C	+80 °C	+80 °C	+80 °C
Lower Temperature	-40 °C	-40 °C	-40 °C	-40 °C
Housing Material	Nickel plated brass	Nickel plated brass	Nickel plated brass	Nickel plated brass
Contact Material	Golden over nickel plated CuZn	Golden over nickel plated CuZn	Golden over nickel plated CuZn	Golden over nickel plated CuZn
Overvoltage Category	II	II	II	II
Voltage Vdc	1 to 600***	1 to 600***	1 to 600***	1 to 600***
Voltage Vac	1 to 600***	1 to 600***	1 to 600***	1 to 600***
Max. Currrent	9 A @40°C	9 A @40°C	9 A @40°C	9 A @40°C
Contact Gender	F	F	F	F
Thread Gender	F	M	F	M
Ground Pole	No	No	Yes	Yes
Max. Number Wires	5	5	5	5
Wire Colour	bn4, wh5, bu2, bk1, gy3	bn4, wh5, bu2, bk1, gy3	bn4, wh5, bu2, bk1, gn/ye3	bn4, wh5, bu2, bk1, gn/ye3
Remark	The protection degree level is guaranteed only when correctly assembled with Shield's couterpart	The protection degree level is guaranteed only when correctly assembled with Shield's couterpart	The protection degree level is guaranteed only when correctly assembled with Shield's couterpart	The protection degree level is guaranteed only when correctly assembled with Shield's couterpart
Remark ***	With polution degree 3, the maximum voltage is 300 Vac	With polution degree 3, the maximum voltage is 300 Vac	With polution degree 3, the maximum voltage is 300 Vac	With polution degree 3, the maximum voltage is 300 Vac

Article Number	HDSF 006A0 5A7 0200 000	HDSH 006A0 5A7 0200 000	HDSF 00683 6A7 0200 000	HDSH 00683 6A7 0200 000
Number Of Contacts	6	6	6	6
Protection Degree	IP67 (only frontal side)*	IP67 (only frontal side)*	IP67 (only frontal side)*	IP67 (only frontal side)*
Upper Temperature	+80 °C	+80 °C	+80 °C	+80 °C
Lower Temperature	-40 °C	-40 °C	-40 °C	-40 °C
Housing Material	Nickel plated brass	Nickel plated brass	Nickel plated brass	Nickel plated brass
Contact Material	Golden over nickel plated CuZn	Golden over nickel plated CuZn	Golden over nickel plated CuZn	Golden over nickel plated CuZn
Overvoltage Category	II	II	II	II
Voltage Vdc	1 to 600***	1 to 600***	1 to 600***	1 to 600***
Voltage Vac	1 to 600***	1 to 600***	1 to 600***	1 to 600***
Max. Currrent	9 A @40°C	9 A @40°C	9 A @40°C	9 A @40°C
Contact Gender	F	F	F	F
Thread Gender	F	M	F	M
Ground Pole	No	No	Yes	Yes
Max. Number Wires	6	6	6	6
Wire Colour	din 47100 #A0	din 47100 #A0	n1-1, n2-2, gn/ye3, n3-4, n4-5, n5-6	n1-1, n2-2, gn/ye3, n3-4, n4-5, n5-6
Remark	The protection degree level is guaranteed only when correctly assembled with Shield's couterpart	The protection degree level is guaranteed only when correctly assembled with Shield's couterpart	The protection degree level is guaranteed only when correctly assembled with Shield's couterpart	The protection degree level is guaranteed only when correctly assembled with Shield's couterpart
Remark ***	With polution degree 3, the maximum voltage is 300 Vac	With polution degree 3, the maximum voltage is 300 Vac	With polution degree 3, the maximum voltage is 300 Vac	With polution degree 3, the maximum voltage is 300 Vac

Article Number	HDSF 014C2 4H3 0200 000	HDSH 014C2 4H3 0200 000
Number Of Contacts	14	14
Protection Degree	IP67 (only frontal side)*	IP67 (only frontal side)*
Upper Temperature	+80 °C	+80 °C
Lower Temperature	-40 °C	-40 °C
Housing Material	Nickel plated brass	Nickel plated brass
Contact Material	Golden over nickel plated CuZn	Golden over nickel plated CuZn
Overvoltage Category	II	II
Voltage Vdc	1 to 600***	1 to 600***
Voltage Vac	1 to 600***	1 to 600***
Max. Currrent	4(Signal) 9(Common) A @40°C	4(Signal) 9(Common) A @40°C
Contact Gender	F	F
Thread Gender	F	M
Ground Pole	No	No
Max. Number Wires	14	14
Wire Colour	din 47100 #C2	din 47100 #C2
Remark	The protection degree level is guaranteed only when correctly assembled with Shield's couterpart	The protection degree level is guaranteed only when correctly assembled with Shield's couterpart
Remark ***	With polution degree 3, the maximum voltage is 300 Vac	With polution degree 3, the maximum voltage is 300 Vac

Die Merkmale zwischen Varianten und Subvarianten sind unterschiedlich
