High Density connectors solder pot version

With stamped contacts for standard applications

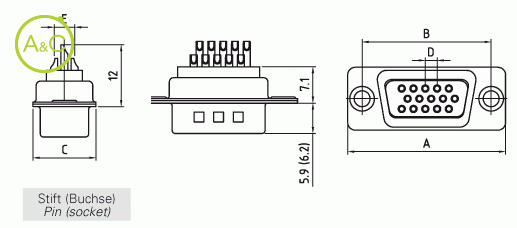

HDT 15 151 G3T

HDT 15 151 G3T

Haben Sie Fragen zu diesem Produkt?

Kontaktieren Sie unseren Steckverbinderspezialist

Schick mir ein individuelles Angebot

Download Datenblatt

Weitere Informationen über diese Marke:

Number Of Poles

15
26
44
62
78

Article Number	HDT 15 151 G3T	HT 15 161 G3T
Number Of Contacts	15	15
Upper Temperature	+125 °C	+125 °C
Lower Temperature	-55 °C	-55 °C
Contact Plating	Mating area: Au over Ni Termination area: Sn over Ni	Mating area: Au over Ni Termination area: Sn over Ni
Housing Material	St. tinned	St. tinned
Contact Material	Cu alloy	Cu alloy
Insulation Resistance	≥10 MΩ	≥10 MΩ
Contact Resistance	≤10m	≤10m
Gender	Male	Female
Insulator Material	Plastic, UL 94-V0 rated	Plastic, UL 94-V0 rated
Mating/unmating Force Fully Loaded Connector	≤50	≤50
Air And Creepage Distance	min. 0,6 mm	min. 0,6 mm
Test Voltage U Eff	1000	1000
Working Voltage	60	60
Current Rating At 20°c	VDE: 3,5 A CSA: 2,5 A UL: 3	VDE: 3,5 A CSA: 2,5 A UL: 3
Quality Class	Class 3 = 50 mating cycles	Class 3 = 50 mating cycles

Article Number	HDT 26 151 G3T	HT 26 161 G3T
Number Of Contacts	26	26
Upper Temperature	+125 °C	+125 °C
Lower Temperature	-55 °C	-55 °C
Contact Plating	Mating area: Au over Ni Termination area: Sn over Ni	Mating area: Au over Ni Termination area: Sn over Ni
Housing Material	St. tinned	St. tinned
Contact Material	Cu alloy	Cu alloy
Insulation Resistance	≥10 MΩ	≥10 MΩ
Contact Resistance	≤10m	≤10m
Gender	Male	Female
Insulator Material	Plastic, UL 94-V0 rated	Plastic, UL 94-V0 rated
Mating/unmating Force Fully Loaded Connector	≤84	≤84
Air And Creepage Distance	min. 0,6 mm	min. 0,6 mm
Test Voltage U Eff	1000	1000
Working Voltage	60	60
Current Rating At 20°c	VDE: 3,5 A CSA: 2,5 A UL: 3	VDE: 3,5 A CSA: 2,5 A UL: 3
Quality Class	Class 3 = 50 mating cycles	Class 3 = 50 mating cycles

Article Number	HDT 44 151 G3T	HT 44 161 G3T
Number Of Contacts	44	44
Upper Temperature	+125 °C	+125 °C
Lower Temperature	-55 °C	-55 °C
Contact Plating	Mating area: Au over Ni Termination area: Sn over Ni	Mating area: Au over Ni Termination area: Sn over Ni
Housing Material	St. tinned	St. tinned
Contact Material	Cu alloy	Cu alloy
Insulation Resistance	≥10 MΩ	≥10 MΩ
Contact Resistance	≤10m	≤10m
Gender	Male	Female
Insulator Material	Plastic, UL 94-V0 rated	Plastic, UL 94-V0 rated
Mating/unmating Force Fully Loaded Connector	≤120	≤120
Air And Creepage Distance	min. 0,6 mm	min. 0,6 mm
Test Voltage U Eff	1000	1000
Working Voltage	60	60
Current Rating At 20°c	VDE: 3,5 A CSA: 2,5 A UL: 3	VDE: 3,5 A CSA: 2,5 A UL: 3
Quality Class	Class 3 = 50 mating cycles	Class 3 = 50 mating cycles

Article Number	HDT 62 151 G3T	HT 62 161 G3T
Number Of Contacts	62	62
Upper Temperature	+125 °C	+125 °C
Lower Temperature	-55 °C	-55 °C
Contact Plating	Mating area: Au over Ni Termination area: Sn over Ni	Mating area: Au over Ni Termination area: Sn over Ni
Housing Material	St. tinned	St. tinned
Contact Material	Cu alloy	Cu alloy
Insulation Resistance	≥10 MΩ	≥10 MΩ
Contact Resistance	≤10m	≤10m
Gender	Male	Female
Insulator Material	Plastic, UL 94-V0 rated	Plastic, UL 94-V0 rated
Mating/unmating Force Fully Loaded Connector	≤170	≤170
Air And Creepage Distance	min. 0,6 mm	min. 0,6 mm
Test Voltage U Eff	1000	1000
Working Voltage	60	60
Current Rating At 20°c	VDE: 3,5 A CSA: 2,5 A UL: 3	VDE: 3,5 A CSA: 2,5 A UL: 3
Quality Class	Class 3 = 50 mating cycles	Class 3 = 50 mating cycles

Article Number	HDT 78 151 G3T	HT 78 161 G3T
Number Of Contacts	78	78
Upper Temperature	+125 °C	+125 °C
Lower Temperature	-55 °C	-55 °C
Contact Plating	Mating area: Au over Ni Termination area: Sn over Ni	Mating area: Au over Ni Termination area: Sn over Ni
Housing Material	St. tinned	St. tinned
Contact Material	Cu alloy	Cu alloy
Insulation Resistance	≥10 MΩ	≥10 MΩ
Contact Resistance	≤10m	≤10m
Gender	Male	Female
Insulator Material	Plastic, UL 94-V0 rated	Plastic, UL 94-V0 rated
Mating/unmating Force Fully Loaded Connector	≤200	≤200
Air And Creepage Distance	min. 0,6 mm	min. 0,6 mm
Test Voltage U Eff	1000	1000
Working Voltage	60	60
Current Rating At 20°c	VDE: 3,5 A CSA: 2,5 A UL: 3	VDE: 3,5 A CSA: 2,5 A UL: 3
Quality Class	Class 3 = 50 mating cycles	Class 3 = 50 mating cycles

Die Merkmale zwischen Varianten und Subvarianten sind unterschiedlich
