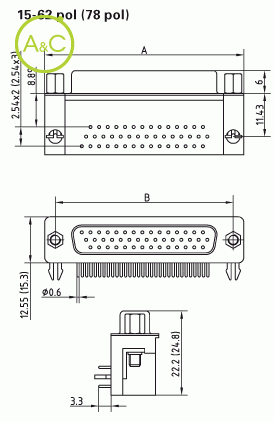

High Density Dip solder 90°

Tin plated metal shell
With stamped contacts

HDT 15 56 G3

HDT 15 56 G3

Haben Sie Fragen zu diesem Produkt?

Kontaktieren Sie unseren Steckverbinderspezialist

Schick mir ein individuelles Angebot

Download Datenblatt

Weitere Informationen über diese Marke:

Number Of Poles

15
26
44
62
78

Article Number	HDT 15 56 G3	HT 15 66 G3
Number Of Contacts	15	15
Upper Temperature	+125 °C	+125 °C
Lower Temperature	-55 °C	-55 °C
Contact Plating	Mating area: Au over Ni Termination area: Sn over Ni	Mating area: Au over Ni Termination area: Sn over Ni
Housing Material	St. tinned	St. tinned
Contact Material	Cu alloy	Cu alloy
Insulation Resistance	≥10 MΩ	≥10 MΩ
Extra Information	The contact density exceeds of the density of standard D-Sub connectors by approx. 60% Available as complete set with plastic bracket, grounding clip and UNC 4-40 thread	The contact density exceeds of the density of standard D-Sub connectors by approx. 60% Available as complete set with plastic bracket, grounding clip and UNC 4-40 thread
Contact Resistance	≤10m	≤10m
Gender	Male	Female
Insulator Material	PBT GF UL 94-V0	PBT GF UL 94-V0
Mating/unmating Force Fully Loaded Connector	≤50	≤50
Air And Creepage Distance	min. 0,6 mm	min. 0,6 mm
Test Voltage U Eff	1000	1000
Working Voltage	60	60
Current Rating At 20°c	Max. 2	Max. 2
Quality Class	Class 3 = 50 mating cycles	Class 3 = 50 mating cycles

Article Number	HDT 26 56 G3	HT 26 66 G3
Number Of Contacts	26	26
Upper Temperature	+125 °C	+125 °C
Lower Temperature	-55 °C	-55 °C
Contact Plating	Mating area: Au over Ni Termination area: Sn over Ni	Mating area: Au over Ni Termination area: Sn over Ni
Housing Material	St. tinned	St. tinned
Contact Material	Cu alloy	Cu alloy
Insulation Resistance	≥10 MΩ	≥10 MΩ
Extra Information	The contact density exceeds of the density of standard D-Sub connectors by approx. 60% Available as complete set with plastic bracket, grounding clip and UNC 4-40 thread	The contact density exceeds of the density of standard D-Sub connectors by approx. 60% Available as complete set with plastic bracket, grounding clip and UNC 4-40 thread
Contact Resistance	≤10m	≤10m
Gender	Male	Female
Insulator Material	PBT GF UL 94-V0	PBT GF UL 94-V0
Mating/unmating Force Fully Loaded Connector	≤84	≤84
Air And Creepage Distance	min. 0,6 mm	min. 0,6 mm
Test Voltage U Eff	1000	1000
Working Voltage	60	60
Current Rating At 20°c	Max. 2	Max. 2
Quality Class	Class 3 = 50 mating cycles	Class 3 = 50 mating cycles

Article Number	HDT 44 56 G3	HT 44 66 G3
Number Of Contacts	44	44
Upper Temperature	+125 °C	+125 °C
Lower Temperature	-55 °C	-55 °C
Contact Plating	Mating area: Au over Ni Termination area: Sn over Ni	Mating area: Au over Ni Termination area: Sn over Ni
Housing Material	St. tinned	St. tinned
Contact Material	Cu alloy	Cu alloy
Insulation Resistance	≥10 MΩ	≥10 MΩ
Extra Information	The contact density exceeds of the density of standard D-Sub connectors by approx. 60% Available as complete set with plastic bracket, grounding clip and UNC 4-40 thread	The contact density exceeds of the density of standard D-Sub connectors by approx. 60% Available as complete set with plastic bracket, grounding clip and UNC 4-40 thread
Contact Resistance	≤10m	≤10m
Gender	Male	Female
Insulator Material	PBT GF UL 94-V0	PBT GF UL 94-V0
Mating/unmating Force Fully Loaded Connector	≤120	≤120
Air And Creepage Distance	min. 0,6 mm	min. 0,6 mm
Test Voltage U Eff	1000	1000
Working Voltage	60	60
Current Rating At 20°c	Max. 2	Max. 2
Quality Class	Class 3 = 50 mating cycles	Class 3 = 50 mating cycles

Article Number	HDT 62 56 G3	HT 62 66 G3
Number Of Contacts	62	62
Upper Temperature	+125 °C	+125 °C
Lower Temperature	-55 °C	-55 °C
Contact Plating	Mating area: Au over Ni Termination area: Sn over Ni	Mating area: Au over Ni Termination area: Sn over Ni
Housing Material	St. tinned	St. tinned
Contact Material	Cu alloy	Cu alloy
Insulation Resistance	≥10 MΩ	≥10 MΩ
Extra Information	The contact density exceeds of the density of standard D-Sub connectors by approx. 60% Available as complete set with plastic bracket, grounding clip and UNC 4-40 thread	The contact density exceeds of the density of standard D-Sub connectors by approx. 60% Available as complete set with plastic bracket, grounding clip and UNC 4-40 thread
Contact Resistance	≤10m	≤10m
Gender	Male	Female
Insulator Material	PBT GF UL 94-V0	PBT GF UL 94-V0
Mating/unmating Force Fully Loaded Connector	≤170	≤170
Air And Creepage Distance	min. 0,6 mm	min. 0,6 mm
Test Voltage U Eff	1000	1000
Working Voltage	60	60
Current Rating At 20°c	Max. 2	Max. 2
Quality Class	Class 3 = 50 mating cycles	Class 3 = 50 mating cycles

Article Number	HDT 78 56 G3	HT 78 66 G3
Number Of Contacts	78	78
Upper Temperature	+125 °C	+125 °C
Lower Temperature	-55 °C	-55 °C
Contact Plating	Mating area: Au over Ni Termination area: Sn over Ni	Mating area: Au over Ni Termination area: Sn over Ni
Housing Material	St. tinned	St. tinned
Contact Material	Cu alloy	Cu alloy
Insulation Resistance	≥10 MΩ	≥10 MΩ
Extra Information	The contact density exceeds of the density of standard D-Sub connectors by approx. 60% Available as complete set with plastic bracket, grounding clip and UNC 4-40 thread	The contact density exceeds of the density of standard D-Sub connectors by approx. 60% Available as complete set with plastic bracket, grounding clip and UNC 4-40 thread
Contact Resistance	≤10m	≤10m
Gender	Male	Female
Insulator Material	PBT GF UL 94-V0	PBT GF UL 94-V0
Mating/unmating Force Fully Loaded Connector	≤200	≤200
Air And Creepage Distance	min. 0,6 mm	min. 0,6 mm
Test Voltage U Eff	1000	1000
Working Voltage	60	60
Current Rating At 20°c	Max. 2	Max. 2
Quality Class	Class 3 = 50 mating cycles	Class 3 = 50 mating cycles
