IDC connectors low profile

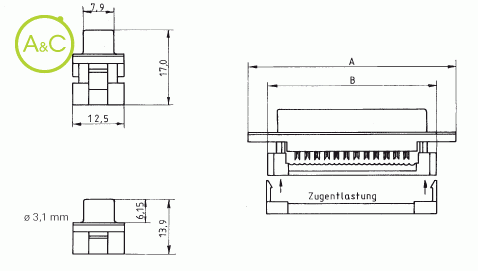

ISDT 09 154 G 3

ISDT 09 154 G 3

Haben Sie Fragen zu diesem Produkt?

Kontaktieren Sie unseren Steckverbinderspezialist

Schick mir ein individuelles Angebot

Download Datenblatt

Weitere Informationen über diese Marke:

Number Of Poles

9
15
25
37

Article Number	ISDT 09 154 G 3	IST 09 164 G 3
Number Of Contacts	9	9
Upper Temperature	+ 125 °C	+ 125 °C
Lower Temperature	-55 °C	-55 °C
Contact Plating	Gold over Nickel, or selective gold	Gold over Nickel, or selective gold
Contact Material	Brass and Copper alloy	Brass and Copper alloy
Test Voltage	1 V ~	1 V ~
Insulation Resistance	1010 MΩ	1010 MΩ
Extra Information	With strain relief With threaded rivet on request	With strain relief With threaded rivet on request
Current Rating	5	5
Contact Resistance	≤ 10 m	≤ 10 m
Gender	Male	Female
Insulator Material	Glass fibre reinforced polybutylene-terephtalate (PBTP) self-extinguishing UL 94 V-0 rated	Glass fibre reinforced polybutylene-terephtalate (PBTP) self-extinguishing UL 94 V-0 rated
Shell	Steel, tin-plated	Steel, tin-plated
Mating And Unimating Force	0.3 - 0.7	0.3 - 0.7
Air And Creepage Distance	≥ 0.9 mm, VDE 0110 rated	≥ 0.9 mm, VDE 0110 rated
Termination Type	IDC	IDC
Quality Class	Class 3 = 50 mating cycles	Class 3 = 50 mating cycles
Usable Cable	AWG 28, stranded wire cable lead spacing 1,27 ± 0,02 Insulation hardness: max. 90 shore A	AWG 28, stranded wire cable lead spacing 1,27 ± 0,02 Insulation hardness: max. 90 shore A

Article Number	ISDT 15 154 G 3	IST 15 164 G 3
Number Of Contacts	15	15
Upper Temperature	+ 125 °C	+ 125 °C
Lower Temperature	-55 °C	-55 °C
Contact Plating	Gold over Nickel, or selective gold	Gold over Nickel, or selective gold
Contact Material	Brass and Copper alloy	Brass and Copper alloy
Test Voltage	1 V ~	1 V ~
Insulation Resistance	1010 MΩ	1010 MΩ
Extra Information	With strain relief With threaded rivet on request	With strain relief With threaded rivet on request
Current Rating	5	5
Contact Resistance	≤ 10 m	≤ 10 m
Gender	Male	Female
Insulator Material	Glass fibre reinforced polybutylene-terephtalate (PBTP) self-extinguishing UL 94 V-0 rated	Glass fibre reinforced polybutylene-terephtalate (PBTP) self-extinguishing UL 94 V-0 rated
Shell	Steel, tin-plated	Steel, tin-plated
Mating And Unimating Force	0.3 - 0.7	0.3 - 0.7
Air And Creepage Distance	≥ 0.9 mm, VDE 0110 rated	≥ 0.9 mm, VDE 0110 rated
Termination Type	IDC	IDC
Quality Class	Class 3 = 50 mating cycles	Class 3 = 50 mating cycles
Usable Cable	AWG 28, stranded wire cable lead spacing 1,27 ± 0,02 Insulation hardness: max. 90 shore A	AWG 28, stranded wire cable lead spacing 1,27 ± 0,02 Insulation hardness: max. 90 shore A

Article Number	ISDT 25 154 G 3	IST 25 164 G 3
Number Of Contacts	25	25
Upper Temperature	+ 125 °C	+ 125 °C
Lower Temperature	-55 °C	-55 °C
Contact Plating	Gold over Nickel, or selective gold	Gold over Nickel, or selective gold
Contact Material	Brass and Copper alloy	Brass and Copper alloy
Test Voltage	1 V ~	1 V ~
Insulation Resistance	1010 MΩ	1010 MΩ
Extra Information	With strain relief With threaded rivet on request	With strain relief With threaded rivet on request
Current Rating	5	5
Contact Resistance	≤ 10 m	≤ 10 m
Gender	Male	Female
Insulator Material	Glass fibre reinforced polybutylene-terephtalate (PBTP) self-extinguishing UL 94 V-0 rated	Glass fibre reinforced polybutylene-terephtalate (PBTP) self-extinguishing UL 94 V-0 rated
Shell	Steel, tin-plated	Steel, tin-plated
Mating And Unimating Force	0.3 - 0.7	0.3 - 0.7
Air And Creepage Distance	≥ 0.9 mm, VDE 0110 rated	≥ 0.9 mm, VDE 0110 rated
Termination Type	IDC	IDC
Quality Class	Class 3 = 50 mating cycles	Class 3 = 50 mating cycles
Usable Cable	AWG 28, stranded wire cable lead spacing 1,27 ± 0,02 Insulation hardness: max. 90 shore A	AWG 28, stranded wire cable lead spacing 1,27 ± 0,02 Insulation hardness: max. 90 shore A

Article Number	ISDT 37 154 G 3	IST 37 164 G 3
Number Of Contacts	37	37
Upper Temperature	+ 125 °C	+ 125 °C
Lower Temperature	-55 °C	-55 °C
Contact Plating	Gold over Nickel, or selective gold	Gold over Nickel, or selective gold
Contact Material	Brass and Copper alloy	Brass and Copper alloy
Test Voltage	1 V ~	1 V ~
Insulation Resistance	1010 MΩ	1010 MΩ
Extra Information	With strain relief With threaded rivet on request	With strain relief With threaded rivet on request
Current Rating	5	5
Contact Resistance	≤ 10 m	≤ 10 m
Gender	Male	Female
Insulator Material	Glass fibre reinforced polybutylene-terephtalate (PBTP) self-extinguishing UL 94 V-0 rated	Glass fibre reinforced polybutylene-terephtalate (PBTP) self-extinguishing UL 94 V-0 rated
Shell	Steel, tin-plated	Steel, tin-plated
Mating And Unimating Force	0.3 - 0.7	0.3 - 0.7
Air And Creepage Distance	≥ 0.9 mm, VDE 0110 rated	≥ 0.9 mm, VDE 0110 rated
Termination Type	IDC	IDC
Quality Class	Class 3 = 50 mating cycles	Class 3 = 50 mating cycles
Usable Cable	AWG 28, stranded wire cable lead spacing 1,27 ± 0,02 Insulation hardness: max. 90 shore A	AWG 28, stranded wire cable lead spacing 1,27 ± 0,02 Insulation hardness: max. 90 shore A
