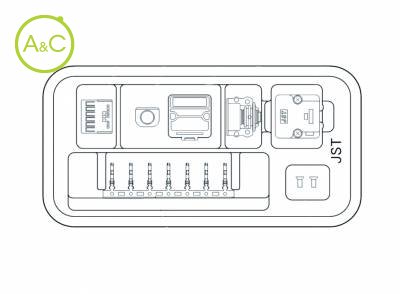

Connector Kit for JFA Connector J2700 series

JFA CONNECTOR J2700 Series

Haben Sie Fragen zu diesem Produkt?

Kontaktieren Sie unseren Steckverbinderspezialist

Schick mir ein individuelles Angebot

Download Datenblatt

Weitere Informationen über diese Marke:

JST

Cable Diameter

Article Number	J27-06FMH-6KL-1M-CF
Number Of Contacts	6
Upper Temperature	+105 °C
Lower Temperature	-55 °C
General Description	2.5mm Pitch Connector Kit for Motor
Connection Type	Factory Automation Connectors
Pitch / Style	2.50 mm
Rated Current (ac/dc)	7.0 A
Rated Voltage (ac/dc)	250 V
Remark	Waterproof
Extra Information	Nominal: M

Article Number	J27-06FMH-6KL-1S-CF
Number Of Contacts	6
Upper Temperature	+105 °C
Lower Temperature	-55 °C
General Description	2.5mm Pitch Connector Kit for Motor
Connection Type	Factory Automation Connectors
Pitch / Style	2.50 mm
Rated Current (ac/dc)	7.0 A
Rated Voltage (ac/dc)	250 V
Remark	Waterproof
Extra Information	Nominal: S

Article Number	J27-06FMH-7KL-1M-CF	J27-06FMH-7KL-1S-CF
Number Of Contacts	6	6
Upper Temperature	+105 °C	+105 °C
Lower Temperature	-55 °C	-55 °C
General Description	2.5mm Pitch Connector Kit for Motor	2.5mm Pitch Connector Kit for Motor
Connection Type	Factory Automation Connectors	Factory Automation Connectors
Pitch / Style	2.50 mm	2.50 mm
Rated Current (ac/dc)	7.0 A	7.0 A
Rated Voltage (ac/dc)	250 V	250 V
Remark	Waterproof	Waterproof
Extra Information	Nominal: M	Nominal: S

Die Merkmale zwischen Varianten und Subvarianten sind unterschiedlich

6 Circuit connector for power supply of servomotor. This connector is supplied in kits, including all components. Waterproof grade: Grade 5 ingress protection of JIS C 0920 (IEC 60529 IPX5) Standards UL Recognized E60389 RoHS Compliant
