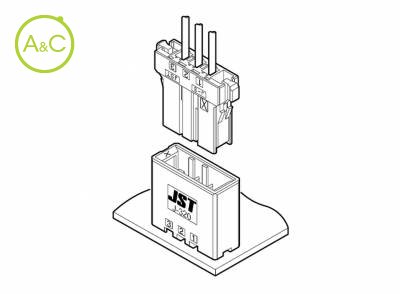

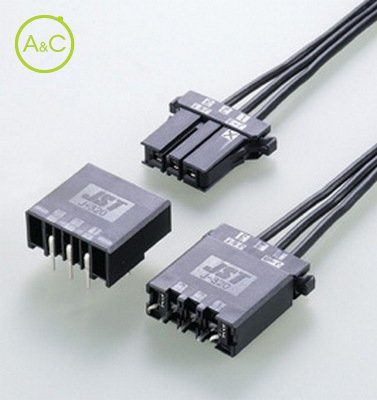

Available in both wire-to-board and wire-to-wire connection, the JFA connector is applicable to a wide range of applications e.g. from signal to output circuits. Double-spring construction. To achieve superior contact reliability the socket contact has two springs, the main spring and the contact pressure adjustment spring. In addition, a spring stopper is incorporated in the connector to facilitate resistance to excessive pressure. Housing lances. Double-spring construction For superior contact reliability, the receptacle contact has a double-spring construction consisting of a main spring and a contact pressure adjustment spring. In addition, a spring stopper is incorporated in the connector to facilitate resistance to excessive pressure. Housing lances Lances are incorporated into the housing design to secure the contacts, therefore keeping contact insertion force low and avoiding contact deformation. Secure locking method When housings are mated, a clear locking sound can be heard to ensure secure engagement. Recognition mark Both contacts and application tools have identification marks to prevent incorrect combinations. Standards UL Recognized E60389 CSA Certified LR20812 TUV Certified J-50015641 RoHS Compliant
