Steckverbinder
Zurück zur Projektübersicht

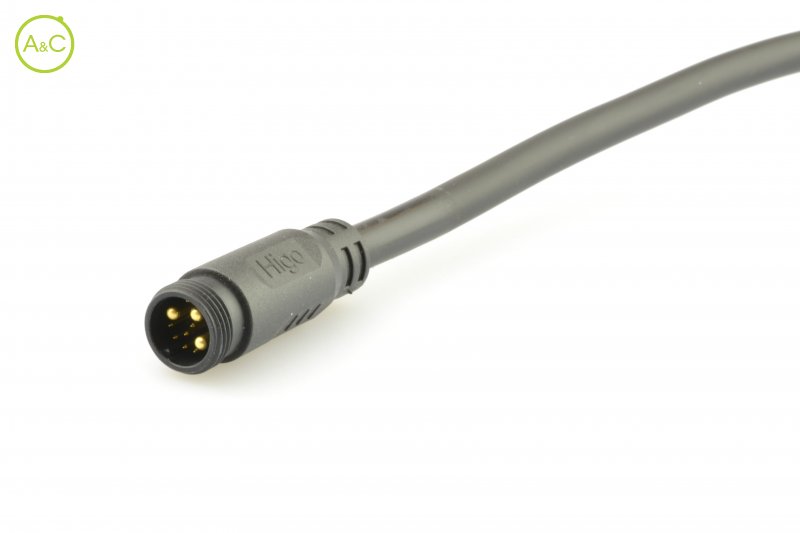

Male cable connector
Haben Sie Fragen zu diesem Produkt?
Weitere Informationen über diese Marke:
Higo
Higo
Number Of Poles
- 11 (3+8)
| Article Number | L1114AG P 00 FF 1000 |
| Color | Black |

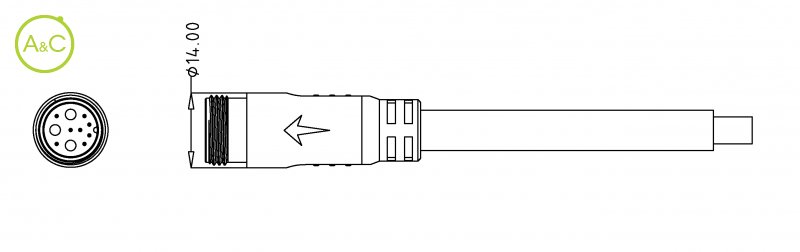

| Connector Diameter | 14 mm |
| Wire Section | 3 x 2,0 + 8 x 1,4 mm² |
| Cable Length | 1000 mm |
| Protection Degree | IP67 |
| Mating Cycles | 200 times |
| Upper Temperature | 80 °C |
| Lower Temperature | -25 °C |
| Rated Voltage | 48 V AC / 60 V DC |
| Max. Contact Resistance | ≤10 mΩ |
| Material Of Contact | Copper Alloy |
| Insulation Wire | FEP |
| Remark | Other cable length/type on request |
| Rated Current | 20 / 2 A |
| Max. Insulation Resistance | ≥20 MΩ |
| Contact Plating | Silver over Nickel |
| Fitting Length | 80 mm |
| Material Jacket | PVC |
Die Merkmale zwischen Varianten und Subvarianten sind unterschiedlich
