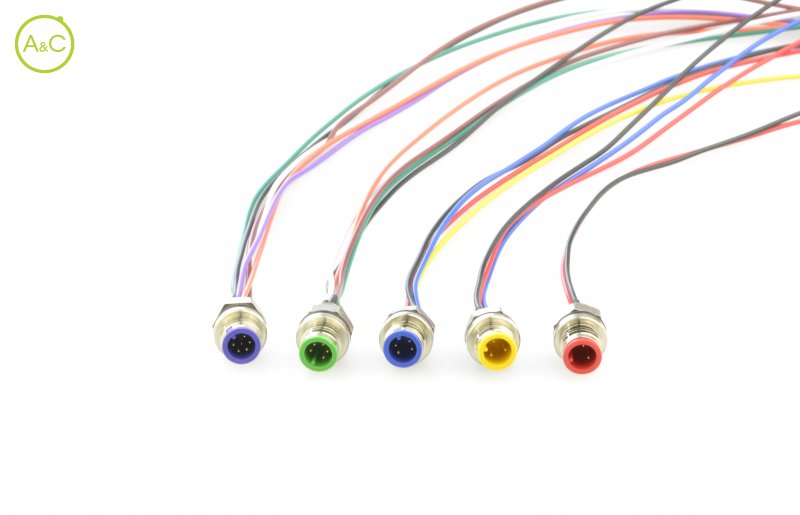

Male panel mount connector

Screw Locking

L209CGC03000300

Haben Sie Fragen zu diesem Produkt?

Kontaktieren Sie unseren Steckverbinderspezialist

Schick mir ein individuelles Angebot

Weitere Informationen über diese Marke:

Number Of Poles

2
3
4
5
6

Article Number	L209CG C 03 00 0300
Color	Red
Connector Diameter	10 mm
Wire Section	2 x 0,2 mm²
Cable Length	300 mm
Protection Degree	IP67
Mating Cycles	200 times
Upper Temperature	80 °C
Lower Temperature	-25 °C
Rated Voltage	48 V AC / 60 V DC
Max. Contact Resistance	≤10 mΩ
Material Of Contact	Phosphor Bronze
Insulation Wire	PVC
Remark	Other cable length/type on request
Rated Current	2 A
Max. Insulation Resistance	≥20 MΩ
Contact Plating	Gold over Nickel

Article Number	L309CG C 03 00 0300
Color	Yellow
Connector Diameter	10 mm
Wire Section	3 x 0,34 mm²
Cable Length	300 mm
Protection Degree	IP67
Mating Cycles	200 times
Upper Temperature	80 °C
Lower Temperature	-25 °C
Rated Voltage	48 V AC / 60 V DC
Max. Contact Resistance	≤10 mΩ
Material Of Contact	Phosphor Bronze
Insulation Wire	PVC
Remark	Other cable length/type on request
Rated Current	2 A
Max. Insulation Resistance	≥20 MΩ
Contact Plating	Gold over Nickel

Article Number	L409CG C 03 00 0300
Color	Blue
Connector Diameter	10 mm
Wire Section	4 x 0,2 mm²
Cable Length	300 mm
Protection Degree	IP67
Mating Cycles	200 times
Upper Temperature	80 °C
Lower Temperature	-25 °C
Rated Voltage	48 V AC / 60 V DC
Max. Contact Resistance	≤10 mΩ
Material Of Contact	Phosphor Bronze
Insulation Wire	PVC
Remark	Other cable length/type on request
Rated Current	2 A
Max. Insulation Resistance	≥20 MΩ
Contact Plating	Gold over Nickel

Article Number	L509CG C 03 00 0300
Color	Grreen
Connector Diameter	10 mm
Wire Section	5 x 0,34 mm²
Cable Length	300 mm
Protection Degree	IP67
Mating Cycles	200 times
Upper Temperature	80 °C
Lower Temperature	-25 °C
Rated Voltage	48 V AC / 60 V DC
Max. Contact Resistance	≤10 mΩ
Material Of Contact	Phosphor Bronze
Insulation Wire	PVC
Remark	Other cable length/type on request
Rated Current	2 A
Max. Insulation Resistance	≥20 MΩ
Contact Plating	Gold over Nickel

Article Number	L609CG C 03 00 0300
Color	Purple
Connector Diameter	10 mm
Wire Section	6 x 0,2 mm²
Cable Length	300 mm
Protection Degree	IP67
Mating Cycles	200 times
Upper Temperature	80 °C
Lower Temperature	-25 °C
Rated Voltage	48 V AC / 60 V DC
Max. Contact Resistance	≤10 mΩ
Material Of Contact	Phosphor Bronze
Insulation Wire	PVC
Remark	Other cable length/type on request
Rated Current	2 A
Max. Insulation Resistance	≥20 MΩ
Contact Plating	Gold over Nickel

Die Merkmale zwischen Varianten und Subvarianten sind unterschiedlich
