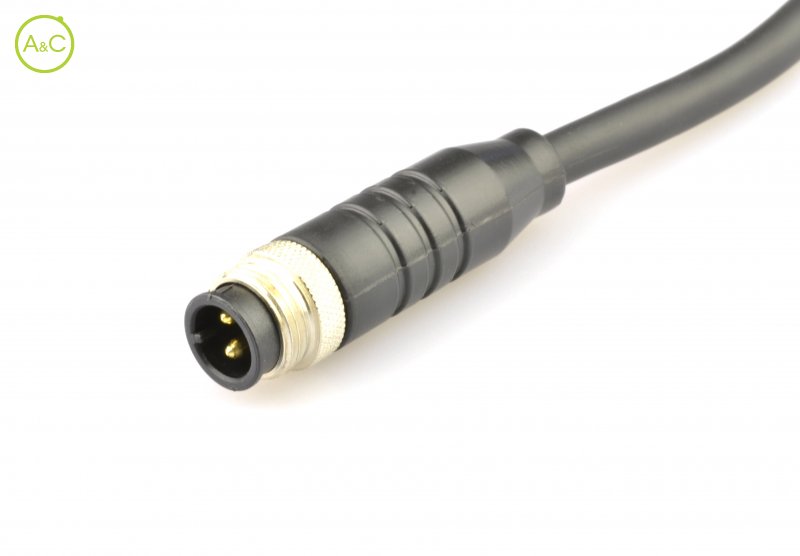

Male cable connector

Haben Sie Fragen zu diesem Produkt?

Download Datenblatt Download Datei

Weitere Informationen über diese Marke:

Article Number	L313AG P 00 AR 1000
Color	Black
Connector Diameter	13 mm
Wire Section	2 x 2,0 + 1 x 0,5 mm²
Cable Length	1000 mm
Protection Degree	IP67
Mating Cycles	200 times
Upper Temperature	80 °C
Lower Temperature	-25 °C
Rated Voltage	48 V AC / 60 V DC
Max. Contact Resistance	≤10 mΩ
Material Of Contact	Copper Alloy
Cable Diameter	5.8 mm
Insulation Wire	Teflon
Remark	Other cable length/type on request
Rated Current	20 / 2 A
Max. Insulation Resistance	≥20 MΩ
Contact Plating	Gold over Nickel
Fitting Length	87.3 mm
Material Jacket	PVC

Article Number	L413AG P 00 AS 1000	L413AG P 00 AZ 1000
Color	Black	Black
Connector Diameter	13 mm	13 mm
Wire Section	2 x 1,5 + 2 x 0,2 mm²	2 x 2,0 + 2 x 0,2 mm²
Cable Length	1000 mm	1000 mm
Protection Degree	IP67	IP67
Mating Cycles	200 times	200 times
Upper Temperature	80 °C	80 °C
Lower Temperature	-25 °C	-25 °C
Rated Voltage	48 V AC / 60 V DC	48 V AC / 60 V DC
Max. Contact Resistance	≤10 mΩ	≤10 mΩ
Material Of Contact	Copper Alloy	Copper Alloy
Cable Diameter	6.1 mm	6.1 mm
Insulation Wire	Teflon	Teflon
Remark	Other cable length/type on request	Other cable length/type on request
Rated Current	20 / 2 A	20 / 2 A
Max. Insulation Resistance	≥20 MΩ	≥20 MΩ
Contact Plating	Gold over Nickel	Gold over Nickel
Fitting Length	87.3 mm	87.3 mm
Material Jacket	PVC	PVC

Article Number	L513AG P 00 AT 1000	L513AG P 00 B0 1000
Color	Black	Black
Connector Diameter	13 mm	13 mm
Wire Section	2 x 1,5 + 3 x 0,2 mm²	2 x 2,0 + 3 x 0,2 mm²
Cable Length	1000 mm	1000 mm
Protection Degree	IP67	IP67
Mating Cycles	200 times	200 times
Upper Temperature	80 °C	80 °C
Lower Temperature	-25 °C	-25 °C
Rated Voltage	48 V AC / 60 V DC	48 V AC / 60 V DC
Max. Contact Resistance	≤10 mΩ	≤10 mΩ
Material Of Contact	Copper Alloy	Copper Alloy
Cable Diameter	6.1 mm	6.1 mm
Insulation Wire	Teflon	Teflon
Remark	Other cable length/type on request	Other cable length/type on request
Rated Current	20 / 2 A	20 / 2 A
Max. Insulation Resistance	≥20 MΩ	≥20 MΩ
Contact Plating	Gold over Nickel	Gold over Nickel
Fitting Length	87.3 mm	87.3 mm
Material Jacket	PVC	PVC

Die Merkmale zwischen Varianten und Subvarianten sind unterschiedlich
