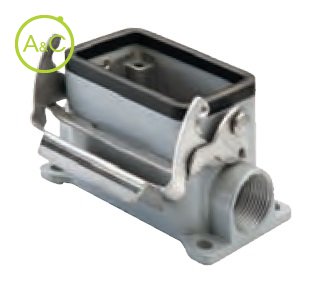

Surface mounting housings

With single lever in stainless steel
Aluminium, Metric entry

M7P 06 L20

Haben Sie Fragen zu diesem Produkt?

Kontaktieren Sie unseren Steckverbinderspezialist

Schick mir ein individuelles Angebot

Download Datenblatt

Weitere Informationen über diese Marke:

Entry

1xM20
2xM20

Article Number	M7P 06 L20
Protection Degree	IP67
Material Housing	Aluminium
Height	53 mm
Length	82
Extra Information	Corrosion resistant UV resistant With interlocking device
Coating Housing	With powder coating
Required Inserts	CDD 24 P + PE; CDS 9 P + PE; CSH 6 P + PE; CNE 6 P + PE; CSE 6 P + PE; CCE 6 P + PE; CSS 6 P + PE; CQE 10 P + PE; MIXO 2 modules; CDSH 6 P + PE; CDSH 9 P + PE
Locking Mechanism	Single locking lever
Operation Lower Temperature	-40 °C
Operation Upper Temperature	125 °C
Position Cable Feed	Side entry
Width	52 mm

Article Number	M7P 06 L220
Protection Degree	IP67
Material Housing	Aluminium
Height	53 mm
Length	82
Extra Information	Corrosion resistant UV resistant With interlocking device
Coating Housing	With powder coating
Required Inserts	CDD 24 P + PE; CDS 9 P + PE; CSH 6 P + PE; CNE 6 P + PE; CSE 6 P + PE; CCE 6 P + PE; CSS 6 P + PE; CQE 10 P + PE; MIXO 2 modules; CDSH 6 P + PE; CDSH 9 P + PE
Locking Mechanism	Single locking lever
Operation Lower Temperature	-40 °C
Operation Upper Temperature	125 °C
Position Cable Feed	Side entry
Width	52 mm

Die Merkmale zwischen Varianten und Subvarianten sind unterschiedlich
