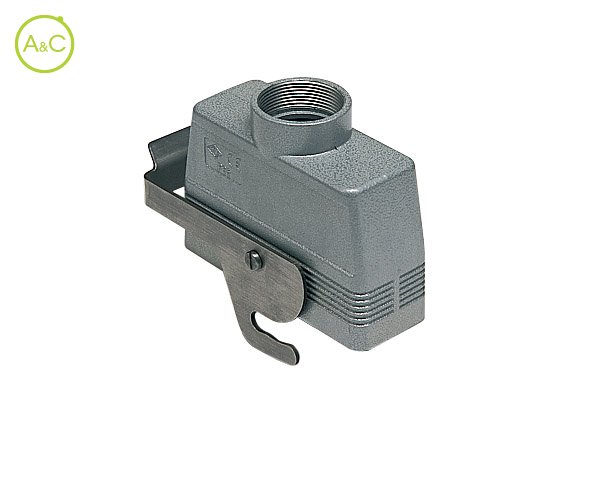

Hoods with central lever, high construction

Top entry
Aluminium, Metric entry

MAV 10 YX32

Haben Sie Fragen zu diesem Produkt?

Kontaktieren Sie unseren Steckverbinderspezialist

Schick mir ein individuelles Angebot

Download Datenblatt

Weitere Informationen über diese Marke:

Entry

1xM32
1xM40

Article Number	MAV 10 YX32
Protection Degree	IP65
Material Housing	Aluminium
Height	85 mm
Length	73
Extra Information	Corrosion resistant UV resistant With interlocking device
Coating Housing	With powder coating
Required Inserts	CDD 42 P + PE; CDS 18 P + PE; CSH 10 P + PE; CNE-CSE 10 P + PE; CCE 10 P + PE; CSS 10 P + PE; CQE 18 P + PE; CMCE 3+2 P + PE; CMSH 3+2 P + PE; CX 8/24 P + PE; Mixo 3 modules;CDSH 18 P + PE
Locking Mechanism	Central clamp
Operation Lower Temperature	-40 °C
Operation Upper Temperature	125 °C
Position Cable Feed	Top entry
Width	43 mm

Article Number	MAV 10 YX40
Protection Degree	IP65
Material Housing	Aluminium
Height	85 mm
Length	73
Extra Information	Corrosion resistant UV resistant With interlocking device
Coating Housing	With powder coating
Required Inserts	CDD 42 P + PE; CDS 18 P + PE; CSH 10 P + PE; CNE-CSE 10 P + PE; CCE 10 P + PE; CSS 10 P + PE; CQE 18 P + PE; CMCE 3+2 P + PE; CMSH 3+2 P + PE; CX 8/24 P + PE; Mixo 3 modules;CDSH 18 P + PE
Locking Mechanism	Central clamp
Operation Lower Temperature	-40 °C
Operation Upper Temperature	125 °C
Position Cable Feed	Top entry
Width	43 mm

Die Merkmale zwischen Varianten und Subvarianten sind unterschiedlich
