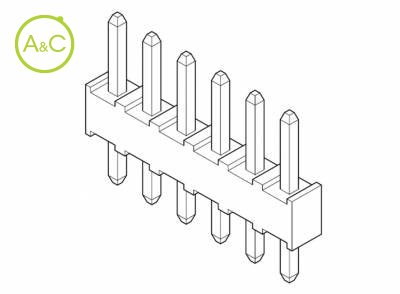

Side Entry Header (THT)

2.5SB HEADER

Haben Sie Fragen zu diesem Produkt?

Kontaktieren Sie unseren Steckverbinderspezialist

Schick mir ein individuelles Angebot

Download Datenblatt

Weitere Informationen über diese Marke:

JST

Total Height

7.6 mm
8.3 mm
8.8 mm
9.7 mm

Article Number	MB(*)P-90-2
Number Of Contacts	2-20
Upper Temperature	+85 °C
Lower Temperature	-25 °C
General Description	2.5mm Pitch Header
Connection Type	Printed Circuit Board Connectors
Pitch / Style	2.50 mm
Rated Current (ac/dc)	3 A
Rated Voltage (ac/dc)	250 V
Pcb Mount Style	Through-hole Technology (THT)
Remark *	The number of circuits (2 to 20) should be inserted in (*)

Article Number	MB(*)P-90S
Number Of Contacts	2-20
Upper Temperature	+85 °C
Lower Temperature	-25 °C
General Description	2.5mm Pitch Header
Connection Type	Printed Circuit Board Connectors
Pitch / Style	2.50 mm
Rated Current (ac/dc)	3 A
Rated Voltage (ac/dc)	250 V
Pcb Mount Style	Through-hole Technology (THT)
Remark *	The number of circuits (2 to 20) should be inserted in (*)

Article Number	MB(*)P-90
Number Of Contacts	2-20
Upper Temperature	+85 °C
Lower Temperature	-25 °C
General Description	2.5mm Pitch Header
Connection Type	Printed Circuit Board Connectors
Pitch / Style	2.50 mm
Rated Current (ac/dc)	3 A
Rated Voltage (ac/dc)	250 V
Pcb Mount Style	Through-hole Technology (THT)
Remark *	The number of circuits (2 to 20) should be inserted in (*)

Article Number	MB(*)P-90H
Number Of Contacts	2-20
Upper Temperature	+85 °C
Lower Temperature	-25 °C
General Description	2.5mm Pitch Header
Connection Type	Printed Circuit Board Connectors
Pitch / Style	2.50 mm
Rated Current (ac/dc)	3 A
Rated Voltage (ac/dc)	250 V
Pcb Mount Style	Through-hole Technology (THT)
Remark *	The number of circuits (2 to 20) should be inserted in (*)

Die Merkmale zwischen Varianten und Subvarianten sind unterschiedlich

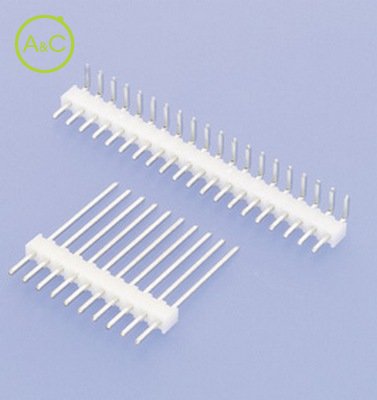

The SB headers can be used to connect any 2.5mm (.098") receptacles to printed circuit boards. They can also be used to directly connect PC boards. They come in pitches of 2.5mm (.098") and in both top entry and side entry type models. 2.54mm (.100") pitch SB headers are also available. In addition, 2.0mm (.079") pitch BC headers are available. Standards UL Recognized E60389 CSA Certified LR20812 RoHS Compliant
