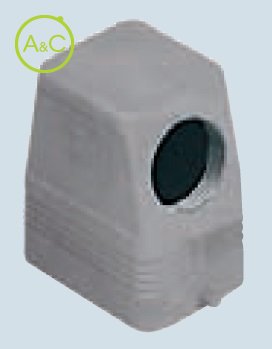

Hoods for electromagnetic compatibility with pegs
Haben Sie Fragen zu diesem Produkt?
Weitere Informationen über diese Marke:
Ilme
Ilme
- General
| Article Number | MFOS 06 L32* |
| Protection Degree | IP66 |
| Material Housing | Aluminium |
| Height | 72 mm |
| Remark | Enclosure without adaptor, threaded on the body, to be used only with a complete cable gland |
| Length | 60 |
| Extra Information |
Corrosion resistant EMC Version UV resistant With interlocking device |
| Coating Housing | With powder coating |
| Required Inserts | CDD 24 P + PE; CDS 9 P + PE; CSH 6 P + PE; CNE 6 P + PE; CSE 6 P + PE; CCE 6 P + PE; CSS 6 P + PE; CQE 10 P + PE; MIXO 2 modules; CDSH 6 P + PE; CDSH 9 P + PE |
| Locking Mechanism | Single locking lever |
| Operation Lower Temperature | -40 °C |
| Operation Upper Temperature | 125 °C |
| Position Cable Feed | Side entry |
| Width | 43 mm |
Die Merkmale zwischen Varianten und Subvarianten sind unterschiedlich
