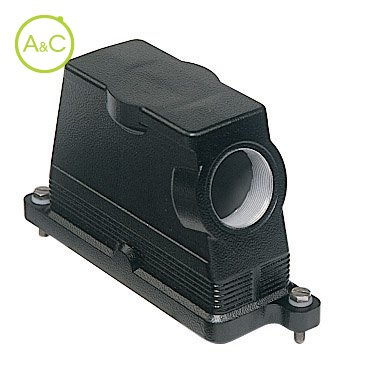

Hoods wtih side entry, screw locking

Aluminium
Metric entry

MGO 06.25

Haben Sie Fragen zu diesem Produkt?

Kontaktieren Sie unseren Steckverbinderspezialist

Schick mir ein individuelles Angebot

Download Datenblatt

Weitere Informationen über diese Marke:

Entry

1xM25
1xM32

Article Number	MGO 06.25
Protection Degree	IP68
Material Housing	Aluminium
Height	101 mm
Length	133
Extra Information	Corrosion resistant UV resistant With interlocking device
Coating Housing	With powder coating
Required Inserts	CDD 24 P + PE; CDS 9 P + PE; CSH 6 P + PE; CNE 6 P + PE; CSE 6 P + PE; CCE 6 P + PE; CSS 6 P + PE; CQE 10 P + PE; MIXO 2 modules; CDSH 6 P + PE; CDSH 9 P + PE
Locking Mechanism	Screw
Operation Lower Temperature	-40 °C
Operation Upper Temperature	125 °C
Position Cable Feed	Side entry
Width	58 mm

Article Number	MGO 06.32
Protection Degree	IP68
Material Housing	Aluminium
Height	101 mm
Length	133
Extra Information	Corrosion resistant UV resistant With interlocking device
Coating Housing	With powder coating
Required Inserts	CDD 24 P + PE; CDS 9 P + PE; CSH 6 P + PE; CNE 6 P + PE; CSE 6 P + PE; CCE 6 P + PE; CSS 6 P + PE; CQE 10 P + PE; MIXO 2 modules; CDSH 6 P + PE; CDSH 9 P + PE
Locking Mechanism	Screw
Operation Lower Temperature	-40 °C
Operation Upper Temperature	125 °C
Position Cable Feed	Side entry
Width	58 mm

Die Merkmale zwischen Varianten und Subvarianten sind unterschiedlich
