Hoods with top entry, Bayonet locking

Aluminium
Metric entry

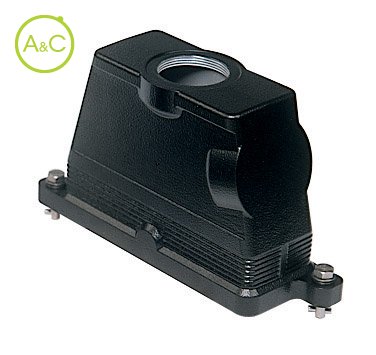

MGV 10.25 B

Haben Sie Fragen zu diesem Produkt?

Kontaktieren Sie unseren Steckverbinderspezialist

Schick mir ein individuelles Angebot

Download Datenblatt

Weitere Informationen über diese Marke:

Entry

1xM25
1xM32
1xM40

Article Number	MGV 10.25 B
Protection Degree	IP68
Material Housing	Aluminium
Height	101 mm
Length	146
Extra Information	Corrosion resistant UV resistant With interlocking device
Coating Housing	With powder coating
Required Inserts	CDD 42 P + PE; CDS 18 P + PE; CSH 10 P + PE; CNE-CSE 10 P + PE; CCE 10 P + PE; CSS 10 P + PE; CQE 18 P + PE; CMCE 3+2 P + PE; CMSH 3+2 P + PE; CX 8/24 P + PE; Mixo 3 modules;CDSH 18 P + PE
Locking Mechanism	Bayonet
Operation Lower Temperature	-40 °C
Operation Upper Temperature	125 °C
Position Cable Feed	Top entry
Width	58 mm

Article Number	MGV 10.32 B
Protection Degree	IP68
Material Housing	Aluminium
Height	101 mm
Length	146
Extra Information	Corrosion resistant UV resistant With interlocking device
Coating Housing	With powder coating
Required Inserts	CDD 42 P + PE; CDS 18 P + PE; CSH 10 P + PE; CNE-CSE 10 P + PE; CCE 10 P + PE; CSS 10 P + PE; CQE 18 P + PE; CMCE 3+2 P + PE; CMSH 3+2 P + PE; CX 8/24 P + PE; Mixo 3 modules;CDSH 18 P + PE
Locking Mechanism	Bayonet
Operation Lower Temperature	-40 °C
Operation Upper Temperature	125 °C
Position Cable Feed	Top entry
Width	58 mm

Article Number	MGV 10.40 B
Protection Degree	IP68
Material Housing	Aluminium
Height	101 mm
Length	146
Extra Information	Corrosion resistant UV resistant With interlocking device
Coating Housing	With powder coating
Required Inserts	CDD 42 P + PE; CDS 18 P + PE; CSH 10 P + PE; CNE-CSE 10 P + PE; CCE 10 P + PE; CSS 10 P + PE; CQE 18 P + PE; CMCE 3+2 P + PE; CMSH 3+2 P + PE; CX 8/24 P + PE; Mixo 3 modules;CDSH 18 P + PE
Locking Mechanism	Bayonet
Operation Lower Temperature	-40 °C
Operation Upper Temperature	125 °C
Position Cable Feed	Top entry
Width	58 mm

Die Merkmale zwischen Varianten und Subvarianten sind unterschiedlich
