Hoods with 1 lever

Side entry, without gasket
Aluminium, Metric entry

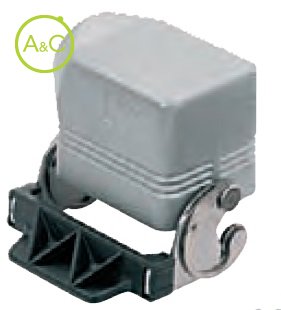

MHO 06 LX20

Haben Sie Fragen zu diesem Produkt?

Kontaktieren Sie unseren Steckverbinderspezialist

Schick mir ein individuelles Angebot

Download Datenblatt

Weitere Informationen über diese Marke:

Entry

1xM20
1xM25

Article Number	MHO 06 LX20,*
Protection Degree	IP66
Material Housing	Aluminium
Height	47 mm
Remark	May be combined with enclosure: CHI 06 LCS;CHI 06 LCP; CHI 06 LC
Remark *	Cannot be used with MIXO inserts
Length	76
Extra Information	Corrosion resistant UV resistant With interlocking device
Coating Housing	With powder coating
Required Inserts	CDD 24 P + PE; CDS 9 P + PE; CSH 6 P + PE; CNE 6 P + PE; CSE 6 P + PE; CCE 6 P + PE; CSS 6 P + PE; CQE 10 P + PE; CDSH 6 P + PE; CDSH 9 P + PE
Locking Mechanism	Single locking lever
Operation Lower Temperature	-40 °C
Operation Upper Temperature	125 °C
Position Cable Feed	Side entry
Width	43 mm

Article Number	MHO 06 LX25,*
Protection Degree	IP66
Material Housing	Aluminium
Height	47 mm
Remark	May be combined with enclosure: CHI 06 LCS;CHI 06 LCP; CHI 06 LC
Remark *	Cannot be used with MIXO inserts
Length	76
Extra Information	Corrosion resistant UV resistant With interlocking device
Coating Housing	With powder coating
Required Inserts	CDD 24 P + PE; CDS 9 P + PE; CSH 6 P + PE; CNE 6 P + PE; CSE 6 P + PE; CCE 6 P + PE; CSS 6 P + PE; CQE 10 P + PE; CDSH 6 P + PE; CDSH 9 P + PE
Locking Mechanism	Single locking lever
Operation Lower Temperature	-40 °C
Operation Upper Temperature	125 °C
Position Cable Feed	Side entry
Width	43 mm

Die Merkmale zwischen Varianten und Subvarianten sind unterschiedlich
