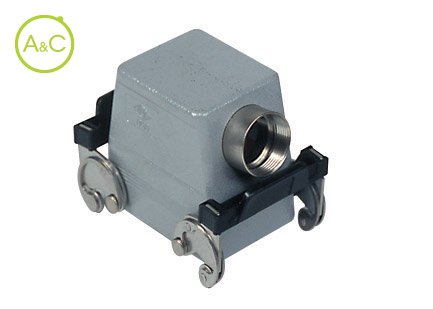

Hoods with 2 levers

Side entry
Aluminium, Metric entry

MHO 50 X25

Haben Sie Fragen zu diesem Produkt?

Kontaktieren Sie unseren Steckverbinderspezialist

Schick mir ein individuelles Angebot

Download Datenblatt

Weitere Informationen über diese Marke:

Entry

1xM25
1xM32

Article Number	MHO 50 X25*
Protection Degree	IP66
Material Housing	Aluminium
Height	56 mm
Remark	May be combined with enclosures: CHI 50 CS; CHP 50 CS; MHP 50 CS
Length	82
Extra Information	Corrosion resistant UV resistant With interlocking device
Coating Housing	With powder coating
Required Inserts	CD 50 P + PE; CDD 76 P + PE; CSAH 32 P + PE; CDA 32 P + PE; CDC 32 P + PE
Locking Mechanism	Double locking levers
Operation Lower Temperature	-40 °C
Operation Upper Temperature	125 °C
Position Cable Feed	Side entry
Width	71 mm

Article Number	MHO 50 X32*
Protection Degree	IP66
Material Housing	Aluminium
Height	56 mm
Remark	May be combined with enclosures: CHI 50 CS; CHP 50 CS; MHP 50 CS
Length	82
Extra Information	Corrosion resistant UV resistant With interlocking device
Coating Housing	With powder coating
Required Inserts	CD 50 P + PE; CDD 76 P + PE; CSAH 32 P + PE; CDA 32 P + PE; CDC 32 P + PE
Locking Mechanism	Double locking levers
Operation Lower Temperature	-40 °C
Operation Upper Temperature	125 °C
Position Cable Feed	Side entry
Width	71 mm

Die Merkmale zwischen Varianten und Subvarianten sind unterschiedlich
