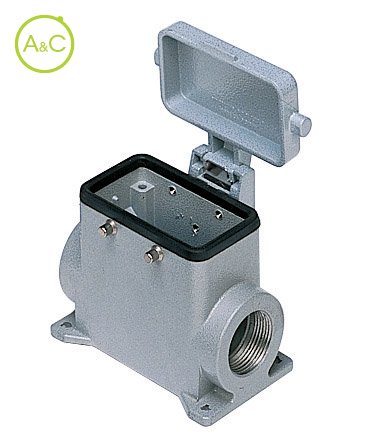

Surface mounting housings
Haben Sie Fragen zu diesem Produkt?
Weitere Informationen über diese Marke:
Ilme
Entry
- 1xM20
- 2xM20
Article Number | MHP 10 CS20* |
Protection Degree | IP65 |
Material Housing | Aluminium |
Height | 57 mm |
Remark | May be combined with enclosures: CHO 10 X; CAO 10 X; CHV 10 X; CAV 10 X; MHO 10 X; MAO 10 X; MHV 10 X; MAV 10 X |
Length | 93.5 |
Extra Information |
Corrosion resistant UV resistant With hinged lid With interlocking device |
Coating Housing | With powder coating |
Required Inserts | CDD 42 P + PE; CDS 18 P + PE; CSH 10 P + PE; CNE-CSE 10 P + PE; CCE 10 P + PE; CSS 10 P + PE; CQE 18 P + PE; CMCE 3+2 P + PE; CMSH 3+2 P + PE; CX 8/24 P + PE; Mixo 3 modules; CDSH 18 P + PE |
Locking Mechanism | Double locking levers |
Operation Lower Temperature | -40 °C |
Operation Upper Temperature | 125 °C |
Position Cable Feed | Side entry |
Width | 52 mm |
Die Merkmale zwischen Varianten und Subvarianten sind unterschiedlich
