Hoods with 2 pegs

Top entry
Aluminium, Metric entry

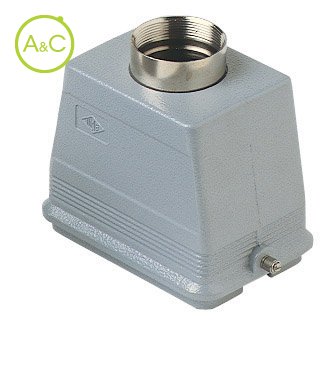

MHV 48 L32

Haben Sie Fragen zu diesem Produkt?

Kontaktieren Sie unseren Steckverbinderspezialist

Schick mir ein individuelles Angebot

Download Datenblatt

Weitere Informationen über diese Marke:

Entry

1xM32
1xM40
1xM50

Article Number	MHV 48 L32
Protection Degree	IP66
Material Housing	Aluminium
Height	121 mm
Length	121
Extra Information	Corrosion resistant UV resistant With interlocking device
Coating Housing	With powder coating
Required Inserts	CD 128P+PE; CDD 216P+PE; CDS 84P+PE; CSH 48P+PE; CNE-CSE 48P+PE; CCE 48P+PE; CSS 48 P+PE; CQE 92P+PE; CMCE 20+4(aux)P+PE; CME 20+4(aux)P+PE; CMSH 20+4(aux)P+PE; CMCE 32+4(aux)P+PE; CME 32+4(aux)P+PE; MIXO 6+6 modules; CDSH 84 P+PE
Locking Mechanism	Single locking lever
Operation Lower Temperature	-40 °C
Operation Upper Temperature	125 °C
Position Cable Feed	Top entry
Width	90 mm

Article Number	MHV 48 L40
Protection Degree	IP66
Material Housing	Aluminium
Height	121 mm
Length	121
Extra Information	Corrosion resistant UV resistant With interlocking device
Coating Housing	With powder coating
Required Inserts	CD 128P+PE; CDD 216P+PE; CDS 84P+PE; CSH 48P+PE; CNE-CSE 48P+PE; CCE 48P+PE; CSS 48 P+PE; CQE 92P+PE; CMCE 20+4(aux)P+PE; CME 20+4(aux)P+PE; CMSH 20+4(aux)P+PE; CMCE 32+4(aux)P+PE; CME 32+4(aux)P+PE; MIXO 6+6 modules; CDSH 84 P+PE
Locking Mechanism	Single locking lever
Operation Lower Temperature	-40 °C
Operation Upper Temperature	125 °C
Position Cable Feed	Top entry
Width	90 mm

Article Number	MHV 48 L50
Protection Degree	IP66
Material Housing	Aluminium
Height	121 mm
Length	121
Extra Information	Corrosion resistant UV resistant With interlocking device
Coating Housing	With powder coating
Required Inserts	CD 128P+PE; CDD 216P+PE; CDS 84P+PE; CSH 48P+PE; CNE-CSE 48P+PE; CCE 48P+PE; CSS 48 P+PE; CQE 92P+PE; CMCE 20+4(aux)P+PE; CME 20+4(aux)P+PE; CMSH 20+4(aux)P+PE; CMCE 32+4(aux)P+PE; CME 32+4(aux)P+PE; MIXO 6+6 modules; CDSH 84 P+PE
Locking Mechanism	Single locking lever
Operation Lower Temperature	-40 °C
Operation Upper Temperature	125 °C
Position Cable Feed	Top entry
Width	90 mm

Die Merkmale zwischen Varianten und Subvarianten sind unterschiedlich
