Female Terminal AWG 24 to 20
Haben Sie Fragen zu diesem Produkt?
Weitere Informationen über diese Marke:
JST
JST
Applicable Wire
- AWG 22 to 20
- AWG 24
| Article Number | SHCM-A03T-P025 |
| Upper Temperature | +105 °C |
| Lower Temperature | -40 °C |
| General Description | 2.50mm Pitch Disconnectable Crimp Style |
| Applicable Wire Size | 0.3 to 0.5 (AWG #22 to #20) mm² |
| Connection Type | Automotive |
| Pitch / Style | 2.50 mm |
| Rated Current (ac/dc) | 5 C, DC (0.5mm2, Single Circuit) A |
| Rated Voltage (ac/dc) | 12 V |
| Pcb Mount Style | Through-hole Technology (THT) |
Die Merkmale zwischen Varianten und Subvarianten sind unterschiedlich

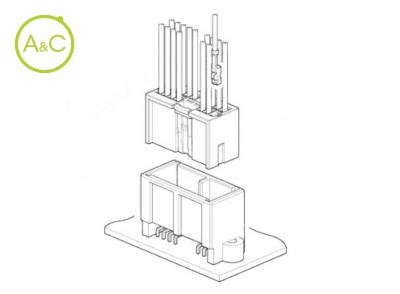

Low profile type connector for interface of automotive electrical equipment.
Low profile
Using the short length female terminal, low profile is realized.
Solder crack prevention configuration
Pin configuration of PC board side connector is designed for solder crack prevention.
Reliability
Various ideas, such as prevention mechanism for excessive deformed female terminal, detection for incomplete inserted terminal by side retainer, improved terminal retention force, and the anti-misinsertion structure, are included in this connector.
RoHS Compliant
