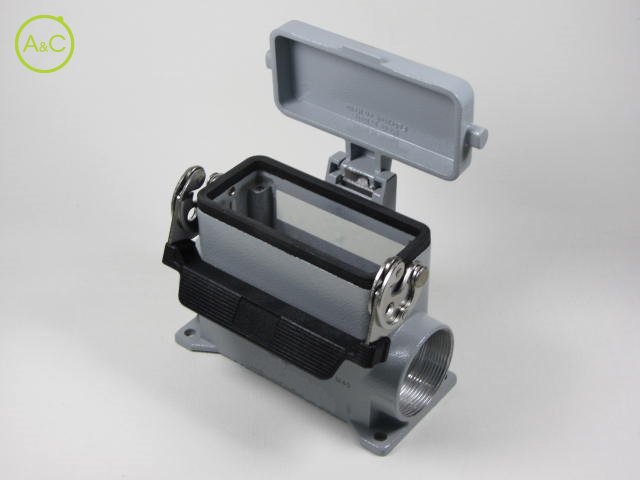

Surface mounting housings with single lever and cover, high construction

Aluminium
Metric entry

MMAP 03 LS32

Haben Sie Fragen zu diesem Produkt?

Kontaktieren Sie unseren Steckverbinderspezialist

Schick mir ein individuelles Angebot

Download Datenblatt

Weitere Informationen über diese Marke:

Entry

1xM32
1xM40
2xM32
2xM40

Article Number	MMAP 03 LS32
Protection Degree	IP65
Material Housing	Aluminium
Height	74 mm
Length	93.5
Extra Information	Corrosion resistant UV resistant With hinged lid With interlocking device
Coating Housing	With powder coating
Required Inserts	CME 3+2P + PE
Locking Mechanism	Single locking lever
Operation Lower Temperature	-40 °C
Operation Upper Temperature	125 °C
Position Cable Feed	Side entry
Width	57 mm

Article Number	MMAP 03 LS40
Protection Degree	IP65
Material Housing	Aluminium
Height	74 mm
Length	93.5
Extra Information	Corrosion resistant UV resistant With hinged lid With interlocking device
Coating Housing	With powder coating
Required Inserts	CME 3+2P + PE
Locking Mechanism	Single locking lever
Operation Lower Temperature	-40 °C
Operation Upper Temperature	125 °C
Position Cable Feed	Side entry
Width	57 mm

Article Number	MMAP 03 LS232
Protection Degree	IP65
Material Housing	Aluminium
Height	74 mm
Length	93.5
Extra Information	Corrosion resistant UV resistant With hinged lid With interlocking device
Coating Housing	With powder coating
Required Inserts	CME 3+2P + PE
Locking Mechanism	Single locking lever
Operation Lower Temperature	-40 °C
Operation Upper Temperature	125 °C
Position Cable Feed	Two-sided
Width	57 mm

Article Number	MMAP 03 LS240
Protection Degree	IP65
Material Housing	Aluminium
Height	74 mm
Length	93.5
Extra Information	Corrosion resistant UV resistant With hinged lid With interlocking device
Coating Housing	With powder coating
Required Inserts	CME 3+2P + PE
Locking Mechanism	Single locking lever
Operation Lower Temperature	-40 °C
Operation Upper Temperature	125 °C
Position Cable Feed	Two-sided
Width	57 mm

Die Merkmale zwischen Varianten und Subvarianten sind unterschiedlich
