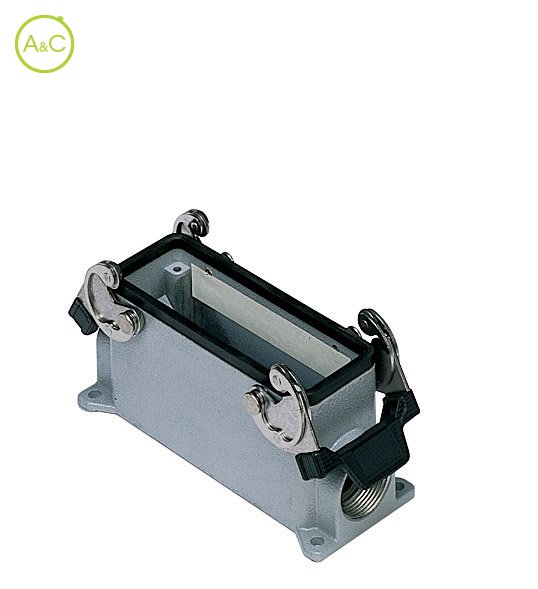

Surface mounting housings with 2 levers, high construction

Aluminium
Metric entry

MMAP 16.32

Haben Sie Fragen zu diesem Produkt?

Kontaktieren Sie unseren Steckverbinderspezialist

Schick mir ein individuelles Angebot

Download Datenblatt

Weitere Informationen über diese Marke:

Entry

1xM32
1xM40
2xM32
2xM40

Article Number	MMAP 16.32
Protection Degree	IP66
Material Housing	Aluminium
Height	81 mm
Length	144
Extra Information	Corrosion resistant UV resistant With interlocking device
Coating Housing	With powder coating
Required Inserts	CME 10+2 (aux)P + PE; CMCE 16+2 (aux)P + PE; CME 16+2 (aux)P+ PE
Locking Mechanism	Double locking levers
Operation Lower Temperature	-40 °C
Operation Upper Temperature	125 °C
Position Cable Feed	Side entry
Width	57 mm

Article Number	MMAP 16.40
Protection Degree	IP66
Material Housing	Aluminium
Height	81 mm
Length	144
Extra Information	Corrosion resistant UV resistant With interlocking device
Coating Housing	With powder coating
Required Inserts	CME 10+2 (aux)P + PE; CMCE 16+2 (aux)P + PE; CME 16+2 (aux)P+ PE
Locking Mechanism	Double locking levers
Operation Lower Temperature	-40 °C
Operation Upper Temperature	125 °C
Position Cable Feed	Side entry
Width	57 mm

Article Number	MMAP 16.232
Protection Degree	IP66
Material Housing	Aluminium
Height	81 mm
Length	144
Extra Information	Corrosion resistant UV resistant With interlocking device
Coating Housing	With powder coating
Required Inserts	CME 10+2 (aux)P + PE; CMCE 16+2 (aux)P + PE; CME 16+2 (aux)P+ PE
Locking Mechanism	Double locking levers
Operation Lower Temperature	-40 °C
Operation Upper Temperature	125 °C
Position Cable Feed	Two-sided
Width	57 mm

Article Number	MMAP 16.240
Protection Degree	IP66
Material Housing	Aluminium
Height	81 mm
Length	144
Extra Information	Corrosion resistant UV resistant With interlocking device
Coating Housing	With powder coating
Required Inserts	CME 10+2 (aux)P + PE; CMCE 16+2 (aux)P + PE; CME 16+2 (aux)P+ PE
Locking Mechanism	Double locking levers
Operation Lower Temperature	-40 °C
Operation Upper Temperature	125 °C
Position Cable Feed	Two-sided
Width	57 mm

Die Merkmale zwischen Varianten und Subvarianten sind unterschiedlich

Zubehör

Covers with 4 pegs
