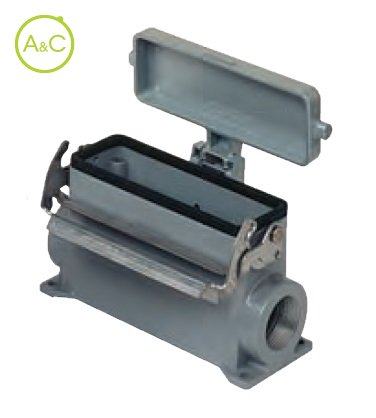

Surface mounting housings, high construction

With single lever in stainless steel and aluminium cover
Aluminium, Metric entry

MVAP 06 LS32

Haben Sie Fragen zu diesem Produkt?

Kontaktieren Sie unseren Steckverbinderspezialist

Schick mir ein individuelles Angebot

Download Datenblatt

Weitere Informationen über diese Marke:

Entry

1xM32
1xM40
2xM32
2xM40

Article Number	MVAP 06 LS32
Protection Degree	IP65
Material Housing	Aluminium
Height	73 mm
Length	82
Extra Information	Corrosion resistant UV resistant With hinged lid With interlocking device
Coating Housing	With powder coating
Required Inserts	CDD 24 P + PE; CDS 9 P + PE; CSH 6 P + PE; CNE 6 P + PE; CSE 6 P + PE; CCE 6 P + PE; CSS 6 P + PE; CQE 10 P + PE; MIXO 2 modules; CDSH 6 P + PE; CDSH 9 P + PE
Locking Mechanism	Single locking lever
Operation Lower Temperature	-40 °C
Operation Upper Temperature	125 °C
Position Cable Feed	Side entry
Width	57 mm

Article Number	MVAP 06 LS40
Protection Degree	IP65
Material Housing	Aluminium
Height	73 mm
Length	82
Extra Information	Corrosion resistant UV resistant With hinged lid With interlocking device
Coating Housing	With powder coating
Required Inserts	CDD 24 P + PE; CDS 9 P + PE; CSH 6 P + PE; CNE 6 P + PE; CSE 6 P + PE; CCE 6 P + PE; CSS 6 P + PE; CQE 10 P + PE; MIXO 2 modules; CDSH 6 P + PE; CDSH 9 P + PE
Locking Mechanism	Single locking lever
Operation Lower Temperature	-40 °C
Operation Upper Temperature	125 °C
Position Cable Feed	Side entry
Width	57 mm

Article Number	MVAP 06 LS232
Protection Degree	IP65
Material Housing	Aluminium
Height	73 mm
Length	82
Extra Information	Corrosion resistant UV resistant With hinged lid With interlocking device
Coating Housing	With powder coating
Required Inserts	CDD 24 P + PE; CDS 9 P + PE; CSH 6 P + PE; CNE 6 P + PE; CSE 6 P + PE; CCE 6 P + PE; CSS 6 P + PE; CQE 10 P + PE; MIXO 2 modules; CDSH 6 P + PE; CDSH 9 P + PE
Locking Mechanism	Single locking lever
Operation Lower Temperature	-40 °C
Operation Upper Temperature	125 °C
Position Cable Feed	Two-sided
Width	57 mm

Article Number	MVAP 06 LS240
Protection Degree	IP65
Material Housing	Aluminium
Height	73 mm
Length	82
Extra Information	Corrosion resistant UV resistant With hinged lid With interlocking device
Coating Housing	With powder coating
Required Inserts	CDD 24 P + PE; CDS 9 P + PE; CSH 6 P + PE; CNE 6 P + PE; CSE 6 P + PE; CCE 6 P + PE; CSS 6 P + PE; CQE 10 P + PE; MIXO 2 modules; CDSH 6 P + PE; CDSH 9 P + PE
Locking Mechanism	Single locking lever
Operation Lower Temperature	-40 °C
Operation Upper Temperature	125 °C
Position Cable Feed	Two-sided
Width	57 mm

Die Merkmale zwischen Varianten und Subvarianten sind unterschiedlich
