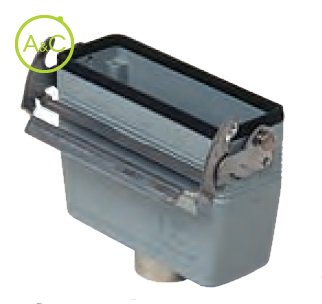

Hoods top entry, high construction
Haben Sie Fragen zu diesem Produkt?
Weitere Informationen über diese Marke:
Ilme
Entry
- 1xM25
- 1xM32
Article Number | MVAV 16 LG25 |
Protection Degree | IP67 |
Material Housing | Aluminium |
Height | 97 mm |
Length | 107.5 |
Extra Information |
Corrosion resistant UV resistant With interlocking device |
Coating Housing | With powder coating |
Required Inserts | CD 40 P + PE; CDD 72 P + PE; CDS 27 P + PE; CSH 16 P + PE; CNE-CSE 16 P + PE; CCE 16 P + PE; CSS 16 P + PE; CQE 32 P + PE; CQEE 40 P + PE; CMCE-CMSH 6+2 (aux) P + PE; CP 6 P + PE; CX 6/36 and 12/2 P + PE; CX 4/0 and 4/2 P + PE; Mixo 4 modules; CDSH 27 P + PE; CX 6+12P + PE |
Locking Mechanism | Single locking lever |
Operation Lower Temperature | -40 °C |
Operation Upper Temperature | 125 °C |
Position Cable Feed | Top entry |
Width | 68 mm |
Die Merkmale zwischen Varianten und Subvarianten sind unterschiedlich
