Hoods with 2 pegs, High construction

Top entry
Aluminium, Metric Entry

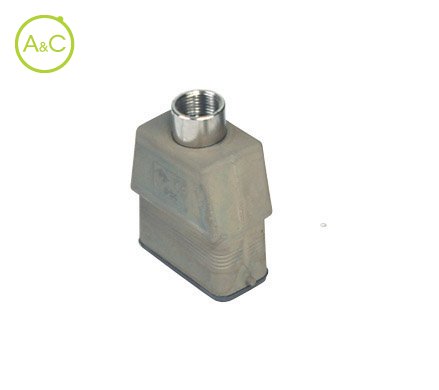

MZAVS 15 L20

Haben Sie Fragen zu diesem Produkt?

Kontaktieren Sie unseren Steckverbinderspezialist

Schick mir ein individuelles Angebot

Download Datenblatt

Weitere Informationen über diese Marke:

Entry

1xM20
1xM25

Article Number	MZAVS 15 L20
Protection Degree	IP66
Material Housing	Aluminium
Coating Housing	With powder coating
Required Inserts	CD 15P + PE; CSAH 10P + PE; CDA 10P + PE; CDC 10 P+PE; Mixo 1 module
Locking Mechanism	Single locking lever
Operation Lower Temperature	-40 °C
Operation Upper Temperature	+125 °C
Position Cable Feed	Top entry

Article Number	MZAVS 15 L25
Protection Degree	IP66
Material Housing	Aluminium
Coating Housing	With powder coating
Required Inserts	CD 15P + PE; CSAH 10P + PE; CDA 10P + PE; CDC 10 P+PE; Mixo 1 module
Locking Mechanism	Single locking lever
Operation Lower Temperature	-40 °C
Operation Upper Temperature	+125 °C
Position Cable Feed	Top entry

Die Merkmale zwischen Varianten und Subvarianten sind unterschiedlich
