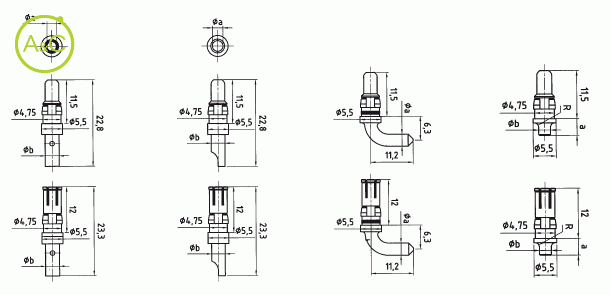

Mixed layout contacts dip solder 90°C

High power contacts

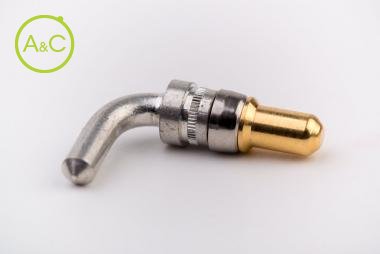

P5610G2

P5610G2

Haben Sie Fragen zu diesem Produkt?

Kontaktieren Sie unseren Steckverbinderspezialist

Schick mir ein individuelles Angebot

Download Datenblatt

Weitere Informationen über diese Marke:

Current Rating

10
20
30
40

Article Number	P5610G2	S6610G2
Contact Plating	Au over Ni	Au over Ni
Contact Material	CU-alloy	CU-alloy
Remark	G2: preferred version G1 & G3 on request	G2: preferred version G1 & G3 on request
Gender	Male	Female
Test Voltage U Eff	1000	1000
Quality Class*	G1 = 500 mating cycles G2 = 200 mating cycles G3 = 50 mating cycles	G1 = 500 mating cycles G2 = 200 mating cycles G3 = 50 mating cycles

Article Number	P5620G2	S6620G2
Contact Plating	Au over Ni	Au over Ni
Contact Material	CU-alloy	CU-alloy
Remark	G2: preferred version G1 & G3 on request	G2: preferred version G1 & G3 on request
Gender	Male	female
Test Voltage U Eff	1000	1000
Quality Class*	G1 = 500 mating cycles G2 = 200 mating cycles G3 = 50 mating cycles	G1 = 500 mating cycles G2 = 200 mating cycles G3 = 50 mating cycles

Article Number	P5630G2	S6630G2
Contact Plating	Au over Ni	Au over Ni
Contact Material	CU-alloy	CU-alloy
Remark	G2: preferred version G1 & G3 on request	G2: preferred version G1 & G3 on request
Gender	Male	Female
Test Voltage U Eff	1000	1000
Quality Class*	G1 = 500 mating cycles G2 = 200 mating cycles G3 = 50 mating cycles	G1 = 500 mating cycles G2 = 200 mating cycles G3 = 50 mating cycles

Article Number	P5640G2	S6640G2
Contact Plating	Au over Ni	Au over Ni
Contact Material	CU-alloy	CU-alloy
Remark	G2: preferred version G1 & G3 on request	G2: preferred version G1 & G3 on request
Gender	Male	Female
Test Voltage U Eff	1000	1000
Quality Class*	G1 = 500 mating cycles G2 = 200 mating cycles G3 = 50 mating cycles	G1 = 500 mating cycles G2 = 200 mating cycles G3 = 50 mating cycles

Die Merkmale zwischen Varianten und Subvarianten sind unterschiedlich
