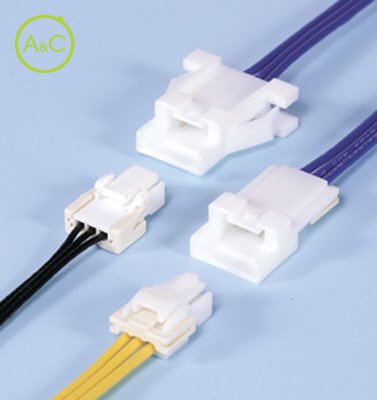

Housing With Panel Locks

PAL CONNECTOR

PALR-02V

PALR-02V

Haben Sie Fragen zu diesem Produkt?

Kontaktieren Sie unseren Steckverbinderspezialist

Schick mir ein individuelles Angebot

Download Datenblatt

Weitere Informationen über diese Marke:

Number Of Poles

2
3
4
6
7
8

Article Number	PALR-02V
Number Of Contacts	2
Upper Temperature	+85 °C
Lower Temperature	-25 °C
General Description	2mm Pitch Disconnectable Crimp Style (Wire to Wire)
Connection Type	Wire to Wire Connectors
Pitch / Style	2.00 mm
Rated Current (ac/dc)	3 A
Rated Voltage (ac/dc)	100 V
Remark	Secure locking device

Article Number	PALR-03V
Number Of Contacts	3
Upper Temperature	+85 °C
Lower Temperature	-25 °C
General Description	2mm Pitch Disconnectable Crimp Style (Wire to Wire)
Connection Type	Wire to Wire Connectors
Pitch / Style	2.00 mm
Rated Current (ac/dc)	3 A
Rated Voltage (ac/dc)	100 V
Remark	Secure locking device

Article Number	PALR-04V
Number Of Contacts	4
Upper Temperature	+85 °C
Lower Temperature	-25 °C
General Description	2mm Pitch Disconnectable Crimp Style (Wire to Wire)
Connection Type	Wire to Wire Connectors
Pitch / Style	2.00 mm
Rated Current (ac/dc)	3 A
Rated Voltage (ac/dc)	100 V
Remark	Secure locking device

Article Number	PALR-06V
Number Of Contacts	6
Upper Temperature	+85 °C
Lower Temperature	-25 °C
General Description	2mm Pitch Disconnectable Crimp Style (Wire to Wire)
Connection Type	Wire to Wire Connectors
Pitch / Style	2.00 mm
Rated Current (ac/dc)	3 A
Rated Voltage (ac/dc)	100 V
Remark	Secure locking device

Article Number	PALR-07V
Number Of Contacts	7
Upper Temperature	+85 °C
Lower Temperature	-25 °C
General Description	2mm Pitch Disconnectable Crimp Style (Wire to Wire)
Connection Type	Wire to Wire Connectors
Pitch / Style	2.00 mm
Rated Current (ac/dc)	3 A
Rated Voltage (ac/dc)	100 V
Remark	Secure locking device

Article Number	PALR-08V
Number Of Contacts	8
Upper Temperature	+85 °C
Lower Temperature	-25 °C
General Description	2mm Pitch Disconnectable Crimp Style (Wire to Wire)
Connection Type	Wire to Wire Connectors
Pitch / Style	2.00 mm
Rated Current (ac/dc)	3 A
Rated Voltage (ac/dc)	100 V
Remark	Secure locking device

Die Merkmale zwischen Varianten und Subvarianten sind unterschiedlich
