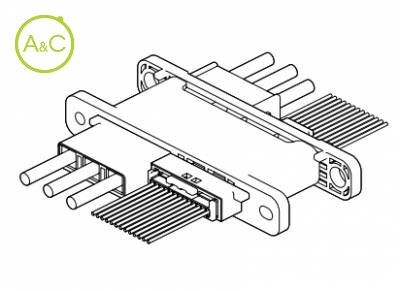

Socket Housing for RIZ-L Connector
Haben Sie Fragen zu diesem Produkt?
Weitere Informationen über diese Marke:
JST
Number Of Poles
- 13
Article Number | RCZR-13V-PS |
Number Of Contacts | 13 |
Upper Temperature | +85 °C |
Lower Temperature | -25 °C |
General Description | 1.5/7.5mm Pitch Disconnectable Crimp Style |
Connection Type | Wire to Wire Connectors |
Pitch / Style | 1.5/7.5 mm |
Rated Current (ac/dc) | Signl/1.0 Power/15 A |
Rated Voltage (ac/dc) | Signl/50 Power/250 V |
Die Merkmale zwischen Varianten und Subvarianten sind unterschiedlich
This connector is a hybrid type single-row drawer connector combined signal and power supply circuits connector to connect the units, absorbs misalignment between units, and excels durability.
RIZ connector with lever locking device is adopted as applicable socket to prevent incomplete mating.
Space saving
High durability
Hybrid type
Signal circuit 1.5mm pitch lever-locking type
Standards
UL Recognized E60389
CSA Certified LR20812
TUV R50157902
RoHS Compliant
