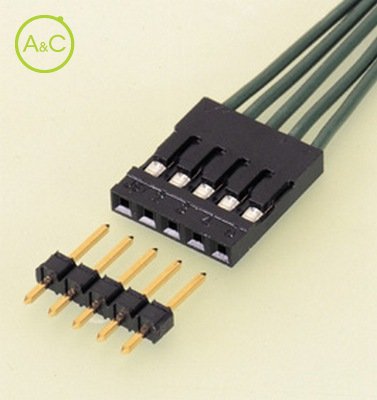

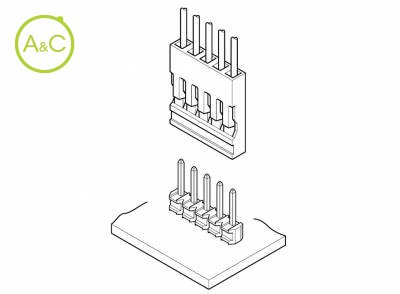

Diagram Enlarge Diagram Well suited for completing the internal connections of office automation equipment, such as personal computers, office computers, and their peripheral devices. Double-leaf spring contact withstands the stresses caused by repeated mating and unmating. The contacts and headers are selectively gold-plated. Thin design, housing lances. Notches are provided on the insulator that allow it to be cut to any length without using special tools. Reliable, yet low in cost Our unique, double-leaf spring contact withstands the stresses caused by repeated mating an unmating and ensures a stable high-pressure connection. The contacts and headers are selectively gold-plated to reduce costs. Depending on the application, fully tin-plated contacts and headers are available to further reduce costs. Space-saving, high density design Measuring only 16.54mm (.651") in height and 2.54mm (.100") thick when mounted on a printed circuit board, the RE connector and header require less mounting space and facilitate high-density circuit design. Easy contact insertion A slight force is all that is needed to insert the contacts into the housing, because the housing has lances. The position of the contacts in the housing can be visually checked. This facilitates insertion of the contacts in the housing. It can be cut to any length to provide a header with any number of circuits Notches are provide on the insulator that allow it to be cut to any length without using special tools. Standards UL Recognized E60389 CSA Certified LR20812 RoHS Compliant
