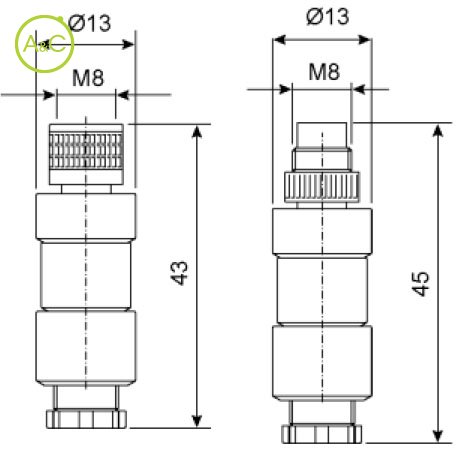

Male round connector
Haben Sie Fragen zu diesem Produkt?
Weitere Informationen über diese Marke:
Shield

Number Of Poles
- 3
- 4
Article Number | REJM 00310 070 | REJM 00311 070 | REJM 00315 070 |
Number Of Contacts | 3 | 3 | 3 |
Protection Degree | IP67* | IP67* | IP67* |
Upper Temperature | +90 °C | +90 °C | +50 °C |
Lower Temperature | -25 °C | -25 °C | -5 °C |
Cable Diameter | 3,5-5 mm | 3,5-5 mm | 3,5-5 mm |
Housing Material | PA66 30%GF | PA66 30%GF | PA66 30%GF |
Housing Oil Resistance | Very good | Very good | Very good |
Contact Material | Golden over nickel plated CuZn | Golden over nickel plated CuZn | Golden over nickel plated CuZn |
Max. Wire Section | 0,5 mm² | 0,25 mm² | 0,34 (Ø 1-1,6mm) mm² |
Locking Nut Material | Metal nickel plated | Metal nickel plated | Metal nickel plated |
Voltage Vdc | 1 to 60 | 1 to 60 | 1 to 30 |
Voltage Vac | 1 to 60 | 1 to 60 | 1 to 30 |
Max. Currrent | 3 A @40°C | 3 A @40°C | 3 A @40°C |
Contact Gender | M | M | M |
Ground Pole | No | No | No |
Max. Number Wires | 3 | 3 | 3 |
Coding | A | A | A |
Cabling System | Screw vite | Solder | Piercing |
Remark | The protection degree level is guaranteed only when correctly assembled with Shield's couterpart | The protection degree level is guaranteed only when correctly assembled with Shield's couterpart | The protection degree level is guaranteed only when correctly assembled with Shield's couterpart |
Die Merkmale zwischen Varianten und Subvarianten sind unterschiedlich
