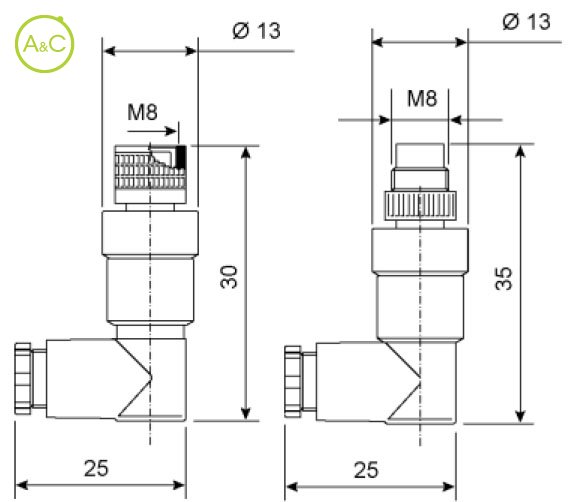

Male round connector

Haben Sie Fragen zu diesem Produkt?

Download Datenblatt

Weitere Informationen über diese Marke:

Article Number	REKM 00310 070	REKM 00311 070
Number Of Contacts	3	3
Protection Degree	IP67*	IP67*
Upper Temperature	+90 °C	+90 °C
Lower Temperature	-25 °C	-25 °C
Cable Diameter	3,5-5 mm	3,5-5 mm
Housing Material	PA66 30%GF	PA66 30%GF
Housing Oil Resistance	Very good	Very good
Contact Material	Golden over nickel plated CuZn	Golden over nickel plated CuZn
Max. Wire Section	0,5 mm²	0,25 mm²
Locking Nut Material	Metal nickel plated	Metal nickel plated
Voltage Vdc	1 to 60	1 to 60
Voltage Vac	1 to 60	1 to 60
Max. Currrent	3 A @40°C	3 A @40°C
Contact Gender	M	M
Ground Pole	No	No
Max. Number Wires	3	3
Coding	A	A
Cabling System	Screw vite	Solder
Remark	The protection degree level is guaranteed only when correctly assembled with Shield's couterpart	The protection degree level is guaranteed only when correctly assembled with Shield's couterpart

Article Number	REKM 00410 070	REKM 00411 070
Number Of Contacts	4	4
Protection Degree	IP67*	IP67*
Upper Temperature	+90 °C	+90 °C
Lower Temperature	-25 °C	-25 °C
Cable Diameter	3,5-5 mm	3,5-5 mm
Housing Material	PA66 30%GF	PA66 30%GF
Housing Oil Resistance	Very good	Very good
Contact Material	Golden over nickel plated CuZn	Golden over nickel plated CuZn
Max. Wire Section	0,5 mm²	0,25 mm²
Locking Nut Material	Metal nickel plated	Metal nickel plated
Voltage Vdc	1 to 30	1 to 30
Voltage Vac	1 to 30	1 to 30
Max. Currrent	3 A @40°C	3 A @40°C
Contact Gender	M	M
Ground Pole	No	No
Max. Number Wires	4	4
Coding	A	A
Cabling System	Screw vite	Solder
Remark	The protection degree level is guaranteed only when correctly assembled with Shield's couterpart	The protection degree level is guaranteed only when correctly assembled with Shield's couterpart

Die Merkmale zwischen Varianten und Subvarianten sind unterschiedlich
