Socket Contact AWG 28 to 24
Haben Sie Fragen zu diesem Produkt?
Weitere Informationen über diese Marke:
JST
JST
Applicable Wire
- AWG 28 to 24
| Article Number | RPJ-SS2331 |
| Upper Temperature | +85 °C |
| Lower Temperature | -25 °C |
| General Description | Disconnectable Crimp Style |
| Applicable Wire Size | 0.08 to 0.22 (AWG #28 to #24) mm² |
| Connection Type | Wire to Wire Connectors |
| Rated Current (ac/dc) | Power/15 Signl/2.0 A |
| Rated Voltage (ac/dc) | Signl/50 Power/250 V |
Die Merkmale zwischen Varianten und Subvarianten sind unterschiedlich

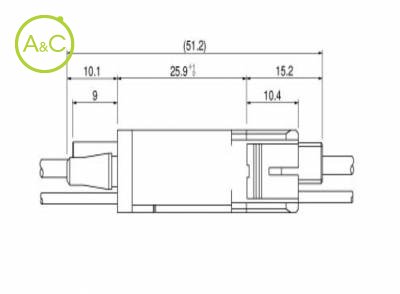

This connector is a hybrid type double-row drawer connector with combined signal and power supply circuits to connect the units. In the signal part, the number of parts reduced by connecting the crimping contact directly.
Space saving
Panel locking device
Hybrid type
Standards
UL Recognized E60389
CSA Certified LR20812
TUV Certified J50102230
RoHS Compliant
