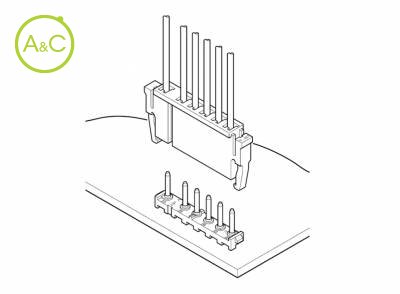

Side Entry Header
Haben Sie Fragen zu diesem Produkt?
Weitere Informationen über diese Marke:
JST
JST
Number Of Poles
- 2
- 3
| Article Number | S02B-DVS-L |
| Number Of Contacts | 2 |
| Upper Temperature | +85 °C |
| Lower Temperature | -25 °C |

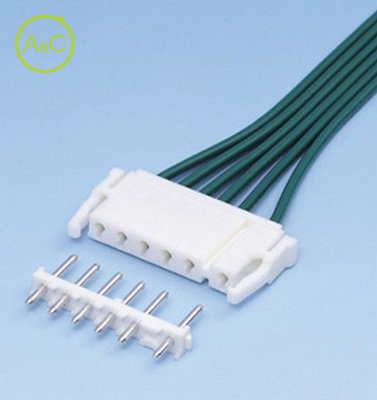

| General Description | 5mm Pitch Disconnectable Crimp Style |
| Connection Type | Printed Circuit Board Connectors |
| Pitch / Style | 5.00 mm |
| Rated Current (ac/dc) | 5 A |
| Rated Voltage (ac/dc) | 250 V |
| Pcb Mount Style | Through-hole Technology (THT) |
Die Merkmale zwischen Varianten und Subvarianten sind unterschiedlich
One position has a different pitch than the others. This provides the connector with polarization and prevents misinsertion.
Two-point contact. Each contact has two wiping areas which ensure stable and reliable connection.
Secure mounting
The housing lock feature secures the connector with the header, ensuring that a stable connection is maintained during vibration.
Twin-beam contacts
Each contact has two wiping areas, ensuring a stable and reliable connection.
Housing lances
The lances on the resilient housing ensure each insertion and secure locking of the contact into housing.
Standards
UL Recognized E60389
CSA Certified LR20812
RoHS Compliant
