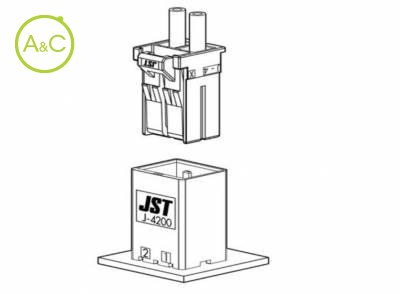

Side Entry Header THT

JFA CONNECTOR J4000 Series

Haben Sie Fragen zu diesem Produkt?

Kontaktieren Sie unseren Steckverbinderspezialist

Schick mir ein individuelles Angebot

Download Datenblatt

Weitere Informationen über diese Marke:

JST

Number Of Poles

Article Number	SC02B-J42SK-GHXPR	SC02B-J42SK-GHXR	SC02B-J42SK-GHYR
Number Of Contacts	2	2	2
Upper Temperature	+105 °C	+105 °C	+105 °C
Lower Temperature	-55 °C	-55 °C	-55 °C
General Description	6.0mm/6.35mm Pitch Disconnectable Crimp Style	6.0mm/6.35mm Pitch Disconnectable Crimp Style	6.0mm/6.35mm Pitch Disconnectable Crimp Style
Connection Type	Factory Automation Connectors	Factory Automation Connectors	Factory Automation Connectors
Pitch / Style	6.00/6.35 mm	6.00/6.35 mm	6.00/6.35 mm
Rated Voltage (ac/dc)	600 V	600 V	600 V
Remark	X Keying	X Keying	Y Keying

Article Number	S03B-J43SK-GHXR	S03B-J43SK-GHYR
Number Of Contacts	3	3
Upper Temperature	+105 °C	+105 °C
Lower Temperature	-55 °C	-55 °C
General Description	6.0mm/6.35mm Pitch Disconnectable Crimp Style	6.0mm/6.35mm Pitch Disconnectable Crimp Style
Connection Type	Factory Automation Connectors	Factory Automation Connectors
Pitch / Style	6.00/6.35 mm	6.00/6.35 mm
Rated Voltage (ac/dc)	600 V	600 V
Remark	X Keying	Y Keying

Article Number	S04B-J43SK-GHXR	S04B-J43SK-GHYR
Number Of Contacts	4	4
Upper Temperature	+105 °C	+105 °C
Lower Temperature	-55 °C	-55 °C
General Description	6.0mm/6.35mm Pitch Disconnectable Crimp Style	6.0mm/6.35mm Pitch Disconnectable Crimp Style
Connection Type	Factory Automation Connectors	Factory Automation Connectors
Pitch / Style	6.00/6.35 mm	6.00/6.35 mm
Rated Voltage (ac/dc)	600 V	600 V
Remark	X Keying	Y Keying

Die Merkmale zwischen Varianten und Subvarianten sind unterschiedlich

Compact and high current capacity connector. This connector realizes high-density mounting on PC board. High current capacity Center locking Housing lance Countermeasure for insertion of foreign substances Standards UL Recognized E60389 RoHS Compliant
