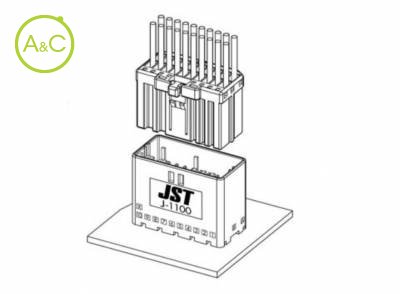

Side Entry Header THT Double Row Centre Locking

JFA CONNECTOR J1000 Series

Haben Sie Fragen zu diesem Produkt?

Kontaktieren Sie unseren Steckverbinderspezialist

Schick mir ein individuelles Angebot

Download Datenblatt

Weitere Informationen über diese Marke:

JST

Number Of Poles

Article Number	S06B-J11DK-GWXR	S06B-J11DK-GWYR	S06B-J11DK-TXR	S06B-J11DK-TYR
Number Of Contacts	6	6	6	6
Upper Temperature	+105 °C	+105 °C	+105 °C	+105 °C
Lower Temperature	-55 °C	-55 °C	-55 °C	-55 °C
General Description	2.2mm Pitch Disconnectable Crimp Style (Wire to Board)	2.2mm Pitch Disconnectable Crimp Style (Wire to Board)	2.2mm Pitch Disconnectable Crimp Style (Wire to Board)	2.2mm Pitch Disconnectable Crimp Style (Wire to Board)
Connection Type	Factory Automation Connectors	Factory Automation Connectors	Factory Automation Connectors	Factory Automation Connectors
Pitch / Style	2.20 mm	2.20 mm	2.20 mm	2.20 mm
Rated Voltage (ac/dc)	125 V	125 V	125 V	125 V
Pcb Mount Style	Through-hole Technology (THT)	Through-hole Technology (THT)	Through-hole Technology (THT)	Through-hole Technology (THT)
Remark	Keying X Gold plated	Keying Y Gold plated	Keying X Tin plated	Keying Y Tin plated

Article Number	S08B-J11DK-GWXR	S08B-J11DK-GWYR	S08B-J11DK-TXR
Number Of Contacts	8	8	8
Upper Temperature	+105 °C	+105 °C	+105 °C
Lower Temperature	-55 °C	-55 °C	-55 °C
General Description	2.2mm Pitch Disconnectable Crimp Style (Wire to Board)	2.2mm Pitch Disconnectable Crimp Style (Wire to Board)	2.2mm Pitch Disconnectable Crimp Style (Wire to Board)
Connection Type	Factory Automation Connectors	Factory Automation Connectors	Factory Automation Connectors
Pitch / Style	2.20 mm	2.20 mm	2.20 mm
Rated Voltage (ac/dc)	125 V	125 V	125 V
Pcb Mount Style	Through-hole Technology (THT)	Through-hole Technology (THT)	Through-hole Technology (THT)
Remark	Keying X Gold plated	Keying Y Gold plated	Keying X Tin plated

Article Number	S12B-J11DK-GWXR	S12B-J11DK-GWYR	S12B-J11DK-TXR	S12B-J11DK-TYR
Number Of Contacts	12	12	12	12
Upper Temperature	+105 °C	+105 °C	+105 °C	+105 °C
Lower Temperature	-55 °C	-55 °C	-55 °C	-55 °C
General Description	2.2mm Pitch Disconnectable Crimp Style (Wire to Board)	2.2mm Pitch Disconnectable Crimp Style (Wire to Board)	2.2mm Pitch Disconnectable Crimp Style (Wire to Board)	2.2mm Pitch Disconnectable Crimp Style (Wire to Board)
Connection Type	Factory Automation Connectors	Factory Automation Connectors	Factory Automation Connectors	Factory Automation Connectors
Pitch / Style	2.20 mm	2.20 mm	2.20 mm	2.20 mm
Rated Voltage (ac/dc)	125 V	125 V	125 V	125 V
Pcb Mount Style	Through-hole Technology (THT)	Through-hole Technology (THT)	Through-hole Technology (THT)	Through-hole Technology (THT)
Remark	Keying X Gold plated	Keying Y Gold plated	Keying X Tin plated	Keying Y Tin plated

Article Number	S20B-J11DK-GWXR	S20B-J11DK-GWYR	S20B-J11DK-TXR	S20B-J11DK-TYR
Number Of Contacts	20	20	20	20
Upper Temperature	+105 °C	+105 °C	+105 °C	+105 °C
Lower Temperature	-55 °C	-55 °C	-55 °C	-55 °C
General Description	2.2mm Pitch Disconnectable Crimp Style (Wire to Board)	2.2mm Pitch Disconnectable Crimp Style (Wire to Board)	2.2mm Pitch Disconnectable Crimp Style (Wire to Board)	2.2mm Pitch Disconnectable Crimp Style (Wire to Board)
Connection Type	Factory Automation Connectors	Factory Automation Connectors	Factory Automation Connectors	Factory Automation Connectors
Pitch / Style	2.20 mm	2.20 mm	2.20 mm	2.20 mm
Rated Voltage (ac/dc)	125 V	125 V	125 V	125 V
Pcb Mount Style	Through-hole Technology (THT)	Through-hole Technology (THT)	Through-hole Technology (THT)	Through-hole Technology (THT)
Remark	Keying X Gold plated	Keying Y Gold plated	Keying X Tin plated	Keying Y Tin plated

Die Merkmale zwischen Varianten und Subvarianten sind unterschiedlich

It is a high reliability connector corresponding to demand of the miniaturization of electronic equipment and the wire size of AWG#18. Double-spring construction Double-spring construction realizes stable contact performance. Housing lance Housing lance assures inserting the terminal into the housing. Retention force of terminal is also stabilized. Clear 'click feeling' Clear feeling of click by inner lock structure and long stroke when mating connector can be realized secure engagement and the performance is stabilized. RoHS Compliant
