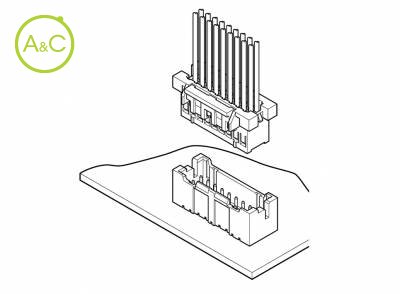

Side Entry Shrouded Header THT

XAD CONNECTOR

Haben Sie Fragen zu diesem Produkt?

Kontaktieren Sie unseren Steckverbinderspezialist

Schick mir ein individuelles Angebot

Download Datenblatt

Weitere Informationen über diese Marke:

JST

Number Of Poles

Article Number	S08B-XADSS-N
Number Of Contacts	8
Upper Temperature	+85 °C
Lower Temperature	-25 °C
General Description	2.5mm Pitch Disconnectable Crimp Style (Wire to Board)
Connection Type	Printed Circuit Board Connectors
Pitch / Style	2.50 mm
Rated Current (ac/dc)	3 A
Rated Voltage (ac/dc)	250 V
Pcb Mount Style	Through-hole Technology (THT)
Remark	Secure locking device

Article Number	S10B-XADSS-N
Number Of Contacts	10
Upper Temperature	+85 °C
Lower Temperature	-25 °C
General Description	2.5mm Pitch Disconnectable Crimp Style (Wire to Board)
Connection Type	Printed Circuit Board Connectors
Pitch / Style	2.50 mm
Rated Current (ac/dc)	3 A
Rated Voltage (ac/dc)	250 V
Pcb Mount Style	Through-hole Technology (THT)
Remark	Secure locking device

Article Number	S12B-XADSS-N
Number Of Contacts	12
Upper Temperature	+85 °C
Lower Temperature	-25 °C
General Description	2.5mm Pitch Disconnectable Crimp Style (Wire to Board)
Connection Type	Printed Circuit Board Connectors
Pitch / Style	2.50 mm
Rated Current (ac/dc)	3 A
Rated Voltage (ac/dc)	250 V
Pcb Mount Style	Through-hole Technology (THT)
Remark	Secure locking device

Article Number	S14B-XADSS-N
Number Of Contacts	14
Upper Temperature	+85 °C
Lower Temperature	-25 °C
General Description	2.5mm Pitch Disconnectable Crimp Style (Wire to Board)
Connection Type	Printed Circuit Board Connectors
Pitch / Style	2.50 mm
Rated Current (ac/dc)	3 A
Rated Voltage (ac/dc)	250 V
Pcb Mount Style	Through-hole Technology (THT)
Remark	Secure locking device

Article Number	S16B-XADSS-N
Number Of Contacts	16
Upper Temperature	+85 °C
Lower Temperature	-25 °C
General Description	2.5mm Pitch Disconnectable Crimp Style (Wire to Board)
Connection Type	Printed Circuit Board Connectors
Pitch / Style	2.50 mm
Rated Current (ac/dc)	3 A
Rated Voltage (ac/dc)	250 V
Pcb Mount Style	Through-hole Technology (THT)
Remark	Secure locking device

Article Number	S18B-XADSS-N
Number Of Contacts	18
Upper Temperature	+85 °C
Lower Temperature	-25 °C
General Description	2.5mm Pitch Disconnectable Crimp Style (Wire to Board)
Connection Type	Printed Circuit Board Connectors
Pitch / Style	2.50 mm
Rated Current (ac/dc)	3 A
Rated Voltage (ac/dc)	250 V
Pcb Mount Style	Through-hole Technology (THT)
Remark	Secure locking device

Article Number	S20B-XADSS-N
Number Of Contacts	20
Upper Temperature	+85 °C
Lower Temperature	-25 °C
General Description	2.5mm Pitch Disconnectable Crimp Style (Wire to Board)
Connection Type	Printed Circuit Board Connectors
Pitch / Style	2.50 mm
Rated Current (ac/dc)	3 A
Rated Voltage (ac/dc)	250 V
Pcb Mount Style	Through-hole Technology (THT)
Remark	Secure locking device

Article Number	S26B-XADSS-N
Number Of Contacts	26
Upper Temperature	+85 °C
Lower Temperature	-25 °C
General Description	2.5mm Pitch Disconnectable Crimp Style (Wire to Board)
Connection Type	Printed Circuit Board Connectors
Pitch / Style	2.50 mm
Rated Current (ac/dc)	3 A
Rated Voltage (ac/dc)	250 V
Pcb Mount Style	Through-hole Technology (THT)
Remark	Secure locking device

Die Merkmale zwischen Varianten und Subvarianten sind unterschiedlich

Header wafer is made of solder crack preventive material, glass-filled PA66 nylon. Double-row construction. Secure locking device prevents accidental diSConnection. Locking device The housing has a locking device which securely mates with the header, preventing accidental diSConnection resulting from external forces such as the routing of wires during assembly process or vibration. Solder crack preventive material Header wafer is made of glass-filled PA66 nylon thus effective against solder cracking. Polarizing boss Headers with polarizing bosses are also available. Mis-insertion preventive design Housing ribs prevent mis-insertion of the housing into the header. Standards UL Recognized E60389 CSA Certified LR20812 TUV Certified R9851219 RoHS Compliant
