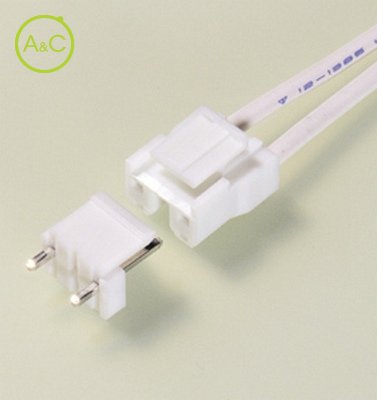

Side Entry Locking Header THT PCB stabilizer

  • VA CONNECTOR

Haben Sie Fragen zu diesem Produkt?

Kontaktieren Sie unseren Steckverbinderspezialist

Schick mir ein individuelles Angebot

Download Datenblatt

Number Of Poles

  • 2
Article Number S2P3-VH
Number Of Contacts 2
Upper Temperature +85 °C
Lower Temperature -25 °C
General Description 7.92mm Pitch Disconnectable Crimp Style
Connection Type Printed Circuit Board Connectors
Pitch / Style 7.92 mm
Rated Current (ac/dc) 7.0 A
Rated Voltage (ac/dc) 250 V
Pcb Mount Style Through-hole Technology (THT)
Remark Secure locking device
Die Merkmale zwischen Varianten und Subvarianten sind unterschiedlich

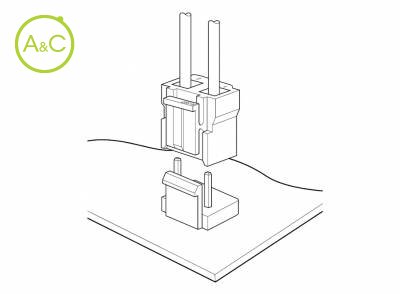

This large current carrying capacity connector can be used with primary power supply circuits of consumer electronic products and various other circuits requiring large currents. Compact connector (with a mounting height of 17.5mm) with a large capacity (7A). Box contact This connector has the box-shaped contact. The reliable connector can be used in a wide variety of applications, from low-voltage, low-current signal circuits to power supply circuits having a relatively large capacity. Secure contact and mounting The housing has an arm lock mechanism which prevents the connector form working loose due to vibration. The mechanism also prevents misinsertion (misalignment or reverse insertion). Compact connector with a large capacity Even though this connector has a large current carrying capacity (7A), it is compact, with a mounting height of 17.5mm (.689"). Standards UL Recognized E60389 CSA Certified LR20812 TUV Certified R75122 RoHS Compliant
