Contact AWG 28 to 24
Haben Sie Fragen zu diesem Produkt?
Weitere Informationen über diese Marke:
JST
JST
Applicable Wire
- AWG 28 to 24
| Article Number | SBHL-002T-P0.5 |
| Upper Temperature | +85 °C |
| Lower Temperature | -25 °C |
| General Description | 2.3mm Pitch Disconnectable Crimp Style |
| Applicable Wire Size | 0.08 to 0.22 (AWG #28 to #24) mm² |
| Connection Type | Printed Circuit Board Connectors |
| Pitch / Style | 2.30 mm |
| Rated Current (ac/dc) | 1.0 A |
| Rated Voltage (ac/dc) | 1,4 V |
| Pcb Mount Style | Surface Mount Technology (SMT) |
Die Merkmale zwischen Varianten und Subvarianten sind unterschiedlich

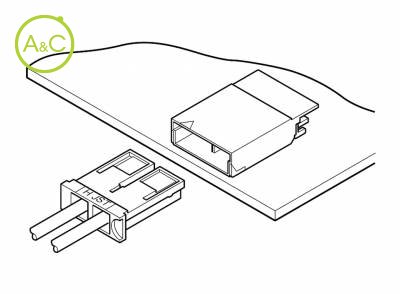

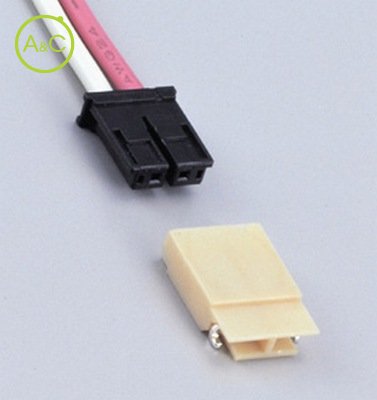

Designed for connecting liquid crystal display backlight lamps to their starters.
Low profile. Only 2.8mm (.110 inches) thick so that the mounting height will be 3.0mm (.118 inches). Contact lances.
Mis-insertion/accidental-diSConnection preventive construction. Housing is designed to prevent mis-insertion into the header, and its locking device also prevents an accidental diSConnection due to vibration or shock.
Contact lances
Contacts are secured in the housing by their spring action, thus fully shrouded. This helps improve the withstanding voltage.
Anti-misinsertion housing
The housing has mis-insertion preventative guides on both sides. Housing locks prevent release of the housing that might result from vibration or shock.
Standards
UL Recognized E60389
CSA Certified LR20812
RoHS Compliant
