Female Terminal AWG 22
Haben Sie Fragen zu diesem Produkt?
Weitere Informationen über diese Marke:
JST
JST
Applicable Wire
- AWG 22
| Article Number | SCPT-A021GF-0.5 |
| Upper Temperature | +100 °C |
| Lower Temperature | -40 °C |
| General Description | 2mm Pitch Disconnectable Crimp Style |
| Applicable Wire Size | 0.3 (AWG #22) mm² |
| Connection Type | Automotive |
| Pitch / Style | 2.00 mm |
| Rated Current (ac/dc) | 3 (0.3mm2, Single Circuit) A |
| Rated Voltage (ac/dc) | 50 V |
| Pcb Mount Style | Through-hole Technology (THT) |
Die Merkmale zwischen Varianten und Subvarianten sind unterschiedlich

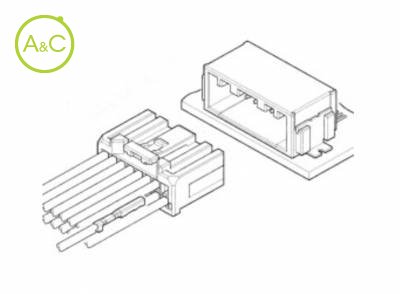

Developed in pursuit of miniaturization and low profile as PC board connector for automobile.
This connector is surface mounting type, having the spring structure on male terminal disproving the conventional concept.
Compact design
2.0mm (.079") pitch is realized miniaturization and low profile as the connector for automobile.
Terminal construction
Female terminal is designed for simple box structure by having spring structure on male terminal.
RoHS Compliant
