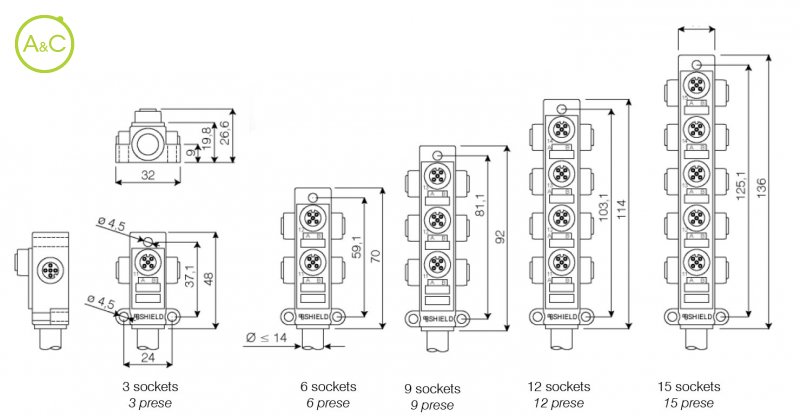

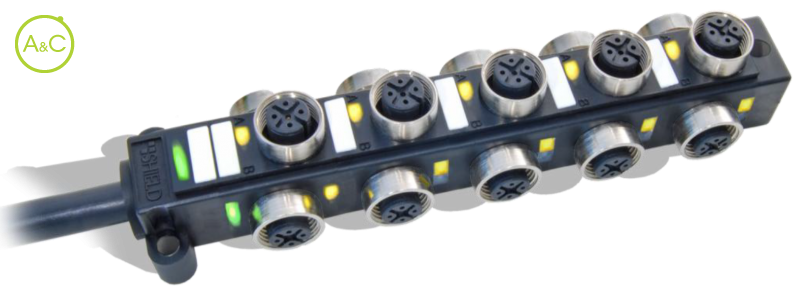

With small space profile, from 3 to 15 sockets, 1 signal each socket

Without LED

SD30 - SD301N7 00100

SD30 - SD301N7 00100

Haben Sie Fragen zu diesem Produkt?

Kontaktieren Sie unseren Steckverbinderspezialist

Schick mir ein individuelles Angebot

Download Datenblatt

Weitere Informationen über diese Marke:

Socket Quantity

3
6
9
12
15

Article Number	SD301N7 00100 533 5000	SD301N7 00130 533 5000
Number Of Contacts	4	5
Protection Degree	IP65*	IP65*
Upper Temperature	+80 °C	+80 °C
Lower Temperature	-25 °C	-25 °C
Housing Material	TPU	TPU
Circuits	Without LED	Without LED
Housing Oil Resistance	Very good	Very good
Contact Material	Nickel & golden plated CuZn	Nickel & golden plated CuZn
Locking Nut Material	Brass nickel plated	Brass nickel plated
Voltage With Pollution Degree 3 Vdc **	1 to 250 Max. power 200 W	1 to 60 Max. power 200 W
Voltage With Pollution Degree 3 Vac **	1 to 250 Max. power 200 W	1 to 60 Max. power 200 W
Max. Currrent	8 A for common wires, 4 A each socket, 2 A each signal A @40°C	8 A for common wires, 4 A each socket, 2 A each signal A @40°C
Control Type	Cable	Cable
Coding	A	A
Connected Terminals	1= V+, 3= V-, 4= A signal	1= V+, 3= V-, 4= A signal, 5= ground
Remark	The protection degree level is guaranteed only when correctly assembled with Shield's couterpart	The protection degree level is guaranteed only when correctly assembled with Shield's couterpart
Remark *	The allowed voltage depends also from the pollution degree of the working environment, therefore by the contamination risk of gaseous, liquid or solid foreign matter 2= only non-conductive pollution and occasionally tempory condensation, 3= wet or dry conductive pollution	The allowed voltage depends also from the pollution degree of the working environment, therefore by the contamination risk of gaseous, liquid or solid foreign matter 2= only non-conductive pollution and occasionally tempory condensation, 3= wet or dry conductive pollution

Article Number	SD302N7 00100 837 5000	SD302N7 00130 837 5000
Number Of Contacts	4	5
Protection Degree	IP65*	IP65*
Upper Temperature	+80 °C	+80 °C
Lower Temperature	-25 °C	-25 °C
Housing Material	TPU	TPU
Circuits	Without LED	Without LED
Housing Oil Resistance	Very good	Very good
Contact Material	Nickel & golden plated CuZn	Nickel & golden plated CuZn
Locking Nut Material	Brass nickel plated	Brass nickel plated
Voltage With Pollution Degree 3 Vdc **	1 to 250 Max. power 200 W	1 to 60 Max. power 200 W
Voltage With Pollution Degree 3 Vac **	1 to 250 Max. power 200 W	1 to 60 Max. power 200 W
Max. Currrent	8 A for common wires, 4 A each socket, 2 A each signal A @40°C	8 A for common wires, 4 A each socket, 2 A each signal A @40°C
Control Type	Cable	Cable
Coding	A	A
Connected Terminals	1= V+, 3= V-, 4= A signal	1= V+, 3= V-, 4= A signal, 5= ground
Remark	The protection degree level is guaranteed only when correctly assembled with Shield's couterpart	The protection degree level is guaranteed only when correctly assembled with Shield's couterpart
Remark *	The allowed voltage depends also from the pollution degree of the working environment, therefore by the contamination risk of gaseous, liquid or solid foreign matter 2= only non-conductive pollution and occasionally tempory condensation, 3= wet or dry conductive pollution	The allowed voltage depends also from the pollution degree of the working environment, therefore by the contamination risk of gaseous, liquid or solid foreign matter 2= only non-conductive pollution and occasionally tempory condensation, 3= wet or dry conductive pollution

Article Number	SD303N7 00100 872 5000	SD303N7 00130 872 5000
Number Of Contacts	4	5
Protection Degree	IP65*	IP65*
Upper Temperature	+80 °C	+80 °C
Lower Temperature	-25 °C	-25 °C
Housing Material	TPU	TPU
Circuits	Without LED	Without LED
Housing Oil Resistance	Very good	Very good
Contact Material	Nickel & golden plated CuZn	Nickel & golden plated CuZn
Locking Nut Material	Brass nickel plated	Brass nickel plated
Voltage With Pollution Degree 3 Vdc **	1 to 250 Max. power 200 W	1 to 60 Max. power 200 W
Voltage With Pollution Degree 3 Vac **	1 to 250 Max. power 200 W	1 to 60 Max. power 200 W
Max. Currrent	8 A for common wires, 4 A each socket, 2 A each signal A @40°C	8 A for common wires, 4 A each socket, 2 A each signal A @40°C
Control Type	Cable	Cable
Coding	A	A
Connected Terminals	1= V+, 3= V-, 4= A signal	1= V+, 3= V-, 4= A signal, 5= ground
Remark	The protection degree level is guaranteed only when correctly assembled with Shield's couterpart	The protection degree level is guaranteed only when correctly assembled with Shield's couterpart
Remark *	The allowed voltage depends also from the pollution degree of the working environment, therefore by the contamination risk of gaseous, liquid or solid foreign matter 2= only non-conductive pollution and occasionally tempory condensation, 3= wet or dry conductive pollution	The allowed voltage depends also from the pollution degree of the working environment, therefore by the contamination risk of gaseous, liquid or solid foreign matter 2= only non-conductive pollution and occasionally tempory condensation, 3= wet or dry conductive pollution

Article Number	SD304N7 00100 838 5000	SD304N7 00130 838 5000
Number Of Contacts	4	5
Protection Degree	IP65*	IP65*
Upper Temperature	+80 °C	+80 °C
Lower Temperature	-25 °C	-25 °C
Housing Material	TPU	TPU
Circuits	Without LED	Without LED
Housing Oil Resistance	Very good	Very good
Contact Material	Nickel & golden plated CuZn	Nickel & golden plated CuZn
Locking Nut Material	Brass nickel plated	Brass nickel plated
Voltage With Pollution Degree 3 Vdc **	1 to 250 Max. power 200 W	1 to 60 Max. power 200 W
Voltage With Pollution Degree 3 Vac **	1 to 250 Max. power 200 W	1 to 60 Max. power 200 W
Max. Currrent	8 A for common wires, 4 A each socket, 2 A each signal A @40°C	8 A for common wires, 4 A each socket, 2 A each signal A @40°C
Control Type	Cable	Cable
Coding	A	A
Connected Terminals	1= V+, 3= V-, 4= A signal	1= V+, 3= V-, 4= A signal, 5= ground
Remark	The protection degree level is guaranteed only when correctly assembled with Shield's couterpart	The protection degree level is guaranteed only when correctly assembled with Shield's couterpart
Remark *	The allowed voltage depends also from the pollution degree of the working environment, therefore by the contamination risk of gaseous, liquid or solid foreign matter 2= only non-conductive pollution and occasionally tempory condensation, 3= wet or dry conductive pollution	The allowed voltage depends also from the pollution degree of the working environment, therefore by the contamination risk of gaseous, liquid or solid foreign matter 2= only non-conductive pollution and occasionally tempory condensation, 3= wet or dry conductive pollution

Article Number	SD305N7 00100 845 5000	SD305N7 00130 845 5000
Number Of Contacts	4	5
Protection Degree	IP65*	IP65*
Upper Temperature	+80 °C	+80 °C
Lower Temperature	-25 °C	-25 °C
Housing Material	TPU	TPU
Circuits	Without LED	Without LED
Housing Oil Resistance	Very good	Very good
Contact Material	Nickel & golden plated CuZn	Nickel & golden plated CuZn
Locking Nut Material	Brass nickel plated	Brass nickel plated
Voltage With Pollution Degree 3 Vdc **	1 to 250 Max. power 200 W	1 to 60 Max. power 200 W
Voltage With Pollution Degree 3 Vac **	1 to 250 Max. power 200 W	1 to 60 Max. power 200 W
Max. Currrent	8 A for common wires, 4 A each socket, 2 A each signal A @40°C	8 A for common wires, 4 A each socket, 2 A each signal A @40°C
Control Type	Cable	Cable
Coding	A	A
Connected Terminals	1= V+, 3= V-, 4= A signal	1= V+, 3= V-, 4= A signal, 5= ground
Remark	The protection degree level is guaranteed only when correctly assembled with Shield's couterpart	The protection degree level is guaranteed only when correctly assembled with Shield's couterpart
Remark *	The allowed voltage depends also from the pollution degree of the working environment, therefore by the contamination risk of gaseous, liquid or solid foreign matter 2= only non-conductive pollution and occasionally tempory condensation, 3= wet or dry conductive pollution	The allowed voltage depends also from the pollution degree of the working environment, therefore by the contamination risk of gaseous, liquid or solid foreign matter 2= only non-conductive pollution and occasionally tempory condensation, 3= wet or dry conductive pollution

Die Merkmale zwischen Varianten und Subvarianten sind unterschiedlich
