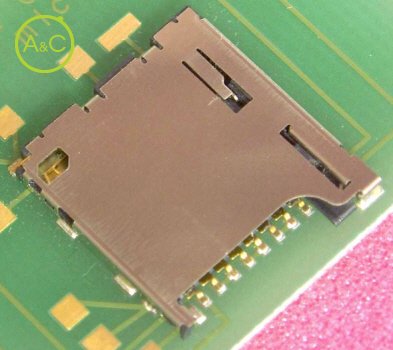

Connector for Micro SD Memory Card

  • SDHL CONNECTOR

Haben Sie Fragen zu diesem Produkt?

Kontaktieren Sie unseren Steckverbinderspezialist

Schick mir ein individuelles Angebot

Download Datenblatt

Tape

  • EMC
Article Number SDHL-8BNS-K-363-A0-ETB (HF)
Upper Temperature +85 °C
Lower Temperature -25 °C
General Description Micro SD Card Connector
Connection Type Printed Circuit Board Connectors
Pitch / Style 1.1 mm
Rated Current (ac/dc) 0.5 A
Rated Voltage (ac/dc) 100 V
Standard Micro SD
Pcb Mount Style Surface Mount Technology (SMT)
Die Merkmale zwischen Varianten und Subvarianten sind unterschiedlich

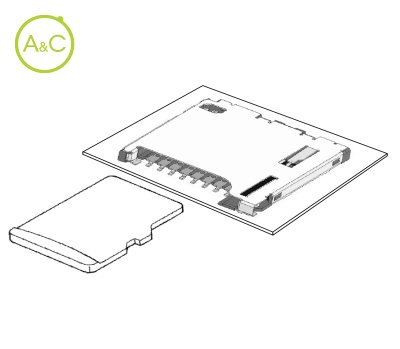

SDHL connector is designed for Micro SD memory cards, it has a low profile design with a Push - Push mechanism so the Micro SD card can be easily ejected. To prevent the Micro SD card from jumping out, this micro SD card connector has Original protection mechanism incorporated. This Micro SD card connector can be used in most small applications i.e. Digital cameras, PDA's and mobile phones. Micro SD Card Low profile with a maximum height of 1.4mm Space saving design SMT Type Push-Push mechanism RoHS Compliant
