Housing for SFM Connector
Haben Sie Fragen zu diesem Produkt?
Weitere Informationen über diese Marke:
JST
JST
Number Of Poles
- 6
| Article Number | SFMR-06V-S (HF) |
| Number Of Contacts | 6 |
| Upper Temperature | +85 °C |
| Lower Temperature | -25 °C |
| General Description | 1.25mm Pitch Disconnectable Crimp Style |
| Connection Type | Printed Circuit Board Connectors |
| Pitch / Style | 1.25 mm |
| Rated Current (ac/dc) | 1.0 A |
| Rated Voltage (ac/dc) | 130 V |
| Pcb Mount Style | Surface Mount Technology (SMT) |
| Remark | Secure locking device |
Die Merkmale zwischen Varianten und Subvarianten sind unterschiedlich

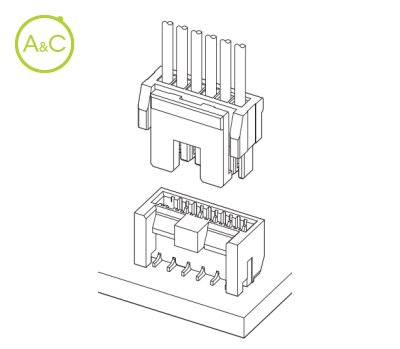

JST introduces the new SFM connector series, with a pitch size of 1.25mm, this 6 circuit crimp style wire to board diSConnectable connector withstands high voltage and has a pcb mountable height of 7.3mm.
This connector has been designed for the power supply of LED backlight in LCD televisions, and incorporates a header with a unique secure locking feature, which ensures correct connector assembly and makes it ideal for demanding applications.
Withstand high voltage
Secure lock
Halogen free
EC directive 2002/95/EC (the RoHS Directive) - Compliant
