Contact AWG 30 to 28

  • SFV Connector
Download Datenblatt

Applicable Wire

  • AWG 30 to 28
Article Number SGVH-002T-P0.2
Upper Temperature +85 °C
Lower Temperature -25 °C
General Description 2.0mm Pitch Disconnectable Crimp Style
Applicable Wire Size 0.05 to 0.08 (AWG #30 to #28) mm²
Connection Type Printed Circuit Board Connectors
Pitch / Style 2.00 mm
Rated Current (ac/dc) 1.0 (WG #28) A
Rated Voltage (ac/dc) 300 V
Pcb Mount Style Surface Mount Technology (SMT)
Die Merkmale zwischen Varianten und Subvarianten sind unterschiedlich

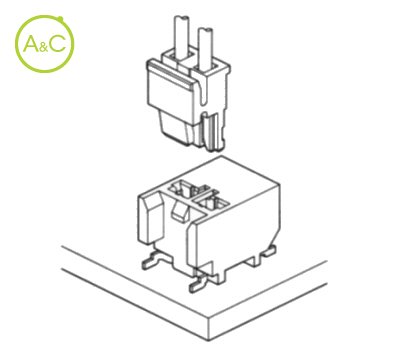

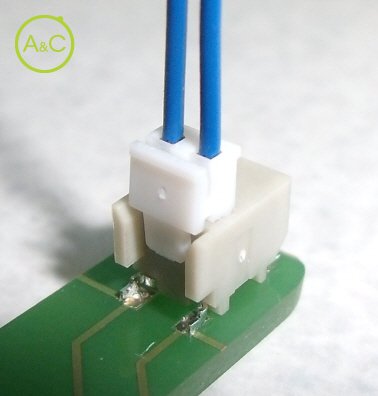

SFV Connector is a wire to board connector for connecting power supply to PCB and withstands high voltage. It is used for power supply of LED backlight in Liquid Crystal Display (LCD) Television sets. Withstands high voltage Secure lock Halogen free EC Directive 2002/95/EC (the RoHS Directive) - Compliant
