Female Terminal AWG 22 to 20
Haben Sie Fragen zu diesem Produkt?
Weitere Informationen über diese Marke:
JST
JST
Applicable Wire
- AWG 22 to 20
| Article Number | SHCM-A03T-P025 |
| Upper Temperature | +120 °C |
| Lower Temperature | -40 °C |
| General Description | 2.54mm Pitch Disconnectable Crimp Style |
| Applicable Wire Size | 0.3 to 0.5 (AWG #22 to #20) mm² |
| Connection Type | Automotive |
| Pitch / Style | 2.54 mm |
| Rated Current (ac/dc) | 5 C, DC (0.5mm2, Single Circuit) A |
| Rated Voltage (ac/dc) | 50 V |
| Pcb Mount Style | Surface Mount Technology (SMT) |
Die Merkmale zwischen Varianten und Subvarianten sind unterschiedlich

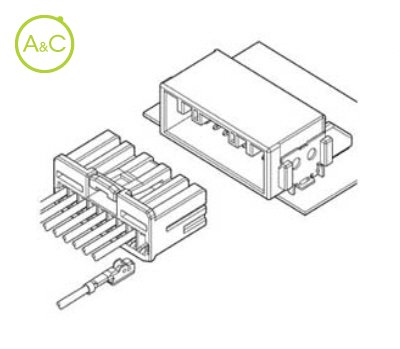

2.54mm pitch, 0.64 unsealed connector for automotive corresponding to the surface mounting.
Miniturization
Using the short length terminal, the miniaturization is realized.
Surface mounting
Corresponding to the surface mounting (lead-free), mounting workability is improved.
Reliability
High reliability ensured by using proven female terminal in the automotive electrical equipment.
RoHS Compliant
