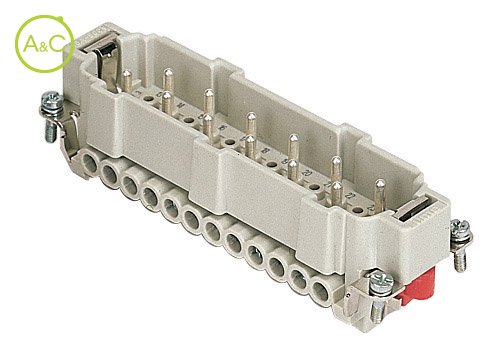

Inserts, 10 + 2(aux)P+ PE, screw terminal connection
Haben Sie Fragen zu diesem Produkt?
Weitere Informationen über diese Marke:
Ilme
Ilme
- General
| Article Number | CMEM 10 T |
| Pollution Degree | 3 |
| Number Of Poles | 10 |
| Connection Type | Screw connection |
| Contact Type | Male |
| Extra Information |
With protective conductor With wire protection |
| Ambient Lower Temperature | -40 °C |
| Ambient Upper Temperature | 125 °C |
| Min. Cross Section Without End Sleeve | 0.5 mm² |
| Max. Cross Section Without End Sleeve | 4 mm² |
| Required Housing |
T-type size 104.27 T-type/W size 104.27 T-type/H size 104.27 T-type/C size 104.27 W-type size 104.27 830V size 104.27 COB size 104.27 |
| Diameter Male Contact | 2.5 mm |
| Inflammability Class Of Insulation Material Acc. With Ul94 | V0 |
| Material Insert | Thermoplastic |
| Material Contact | Brass |
| Plating Of Contact | Silver |
| Max. Rated Current | 16 A |
| Nominal Rated Voltage | 830 V |
| Over Voltage Category | III |
| Rated Surge Voltage | 8 kV |
Die Merkmale zwischen Varianten und Subvarianten sind unterschiedlich
